Image Size(Pixels) |
2592×1944 |
---|---|
Sensor |
Omnivision 5647 fixed-focus |
Aperture |
2.9 |
Focal Length |
3.29 |
FOV |
72.4° |

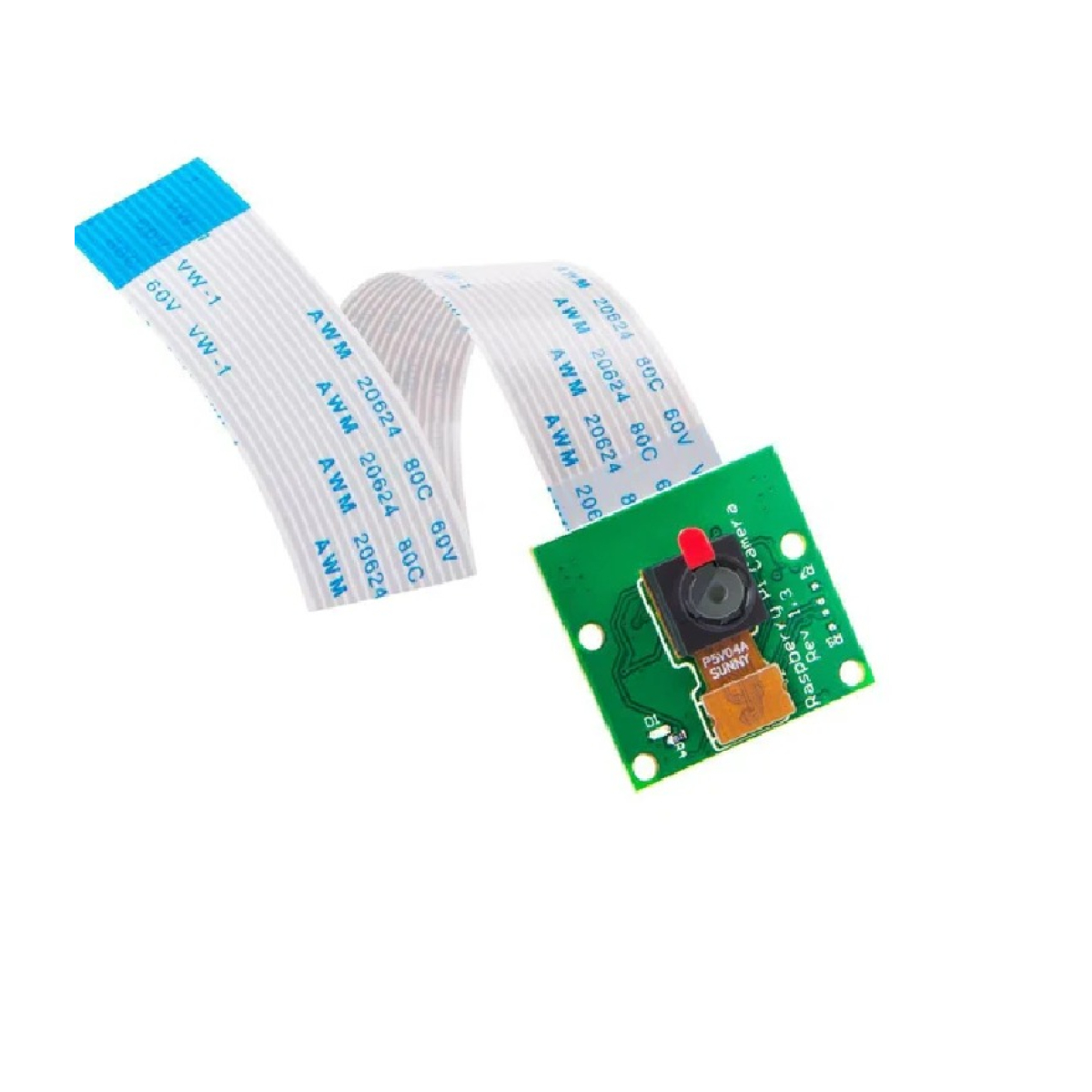

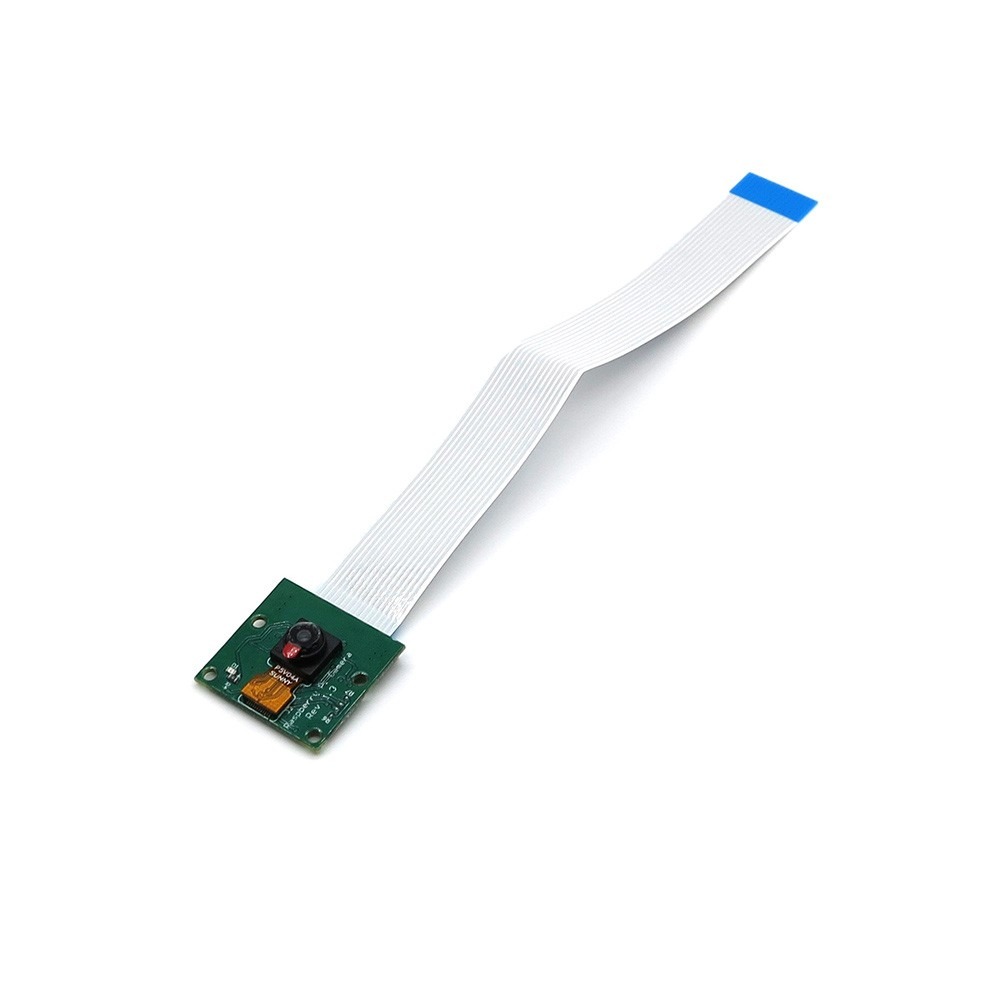

The 5MP Raspberry Pi 3/4 Model B Camera Module Rev 1.3 with Cable equips flexible cables
Hardware connection:
- Soft cable, 90-degree vertical connector, HDMI port next to it. When connecting the contact side facing the HDMI interface.
- Tear protective film on the lens

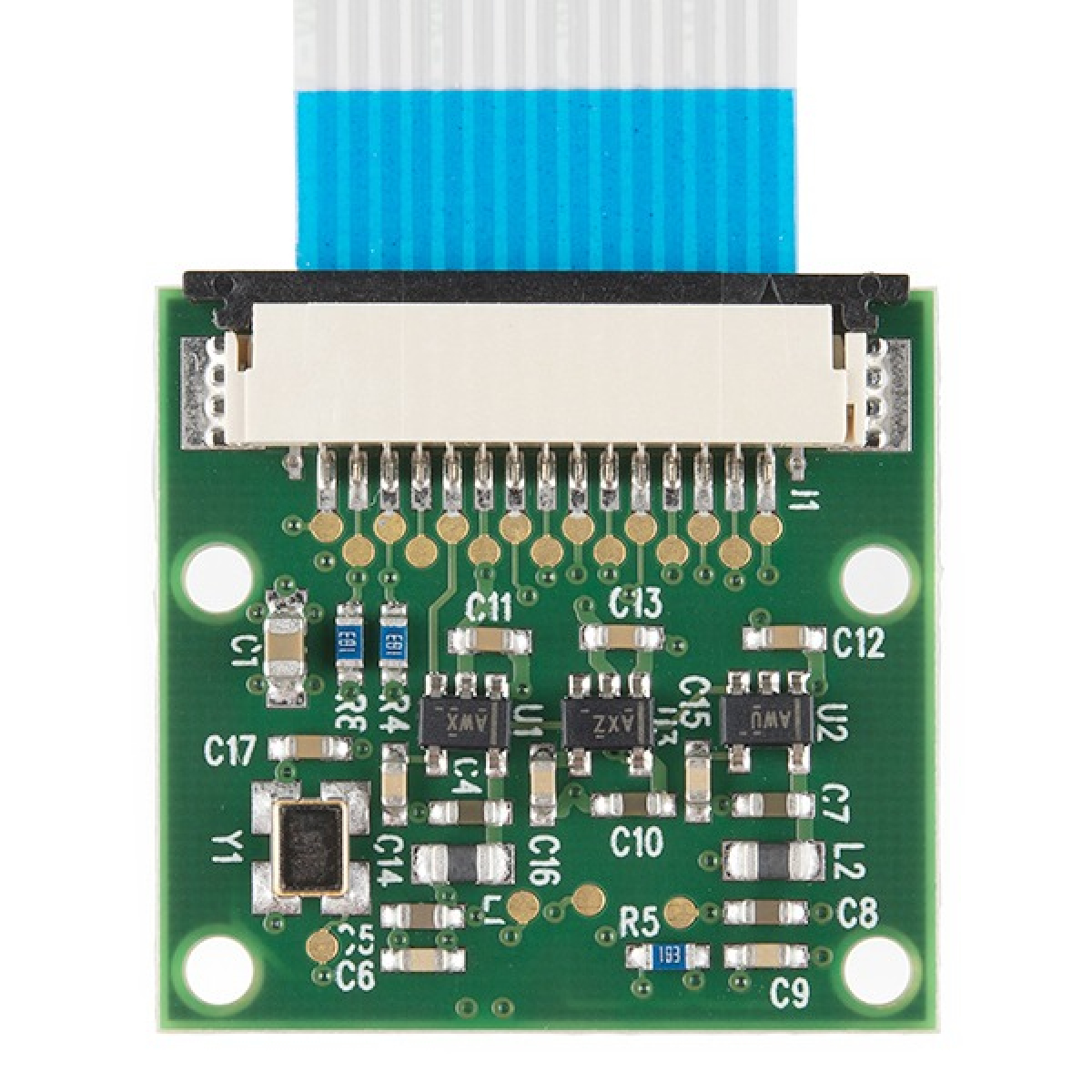

- Bare boards, pay attention to ESD damage, and beware of static electricity!
Software:
- RPi firmware and raspi-config have been updated to the camera, do an apt-get update; apt-get upgrade;
- Raspi-config, select the camera, start RPi firmware camera driver, and then restart
- Using the command-line programs raspivid and raspistill operate a camera to capture video clips or images
- To capture video clips need to play with MPlayer
- How will the data through the network camera live broadcast out:
- By nc command (ncat – Concatenate and redirect sockets) of the input data of the camera, directly to the output ports of the network redirection.
for attaching with Raspberry Pi 3 Model B. The 5MP camera module is perfect for small Raspberry pi projects which have very little space allowance just boot up the latest version of Raspbian and you are good to go!!!
The high-definition 5MP camera delivers outstanding photos but can also shoot video, ideal for drones or CCTV projects. The lightweight camera board allows for it is useful in more practical roles, such as a hidden camera, or even a camera for a Pi phone.
