4CH Relay Shield 5v for Arduino

SKU: HW-254

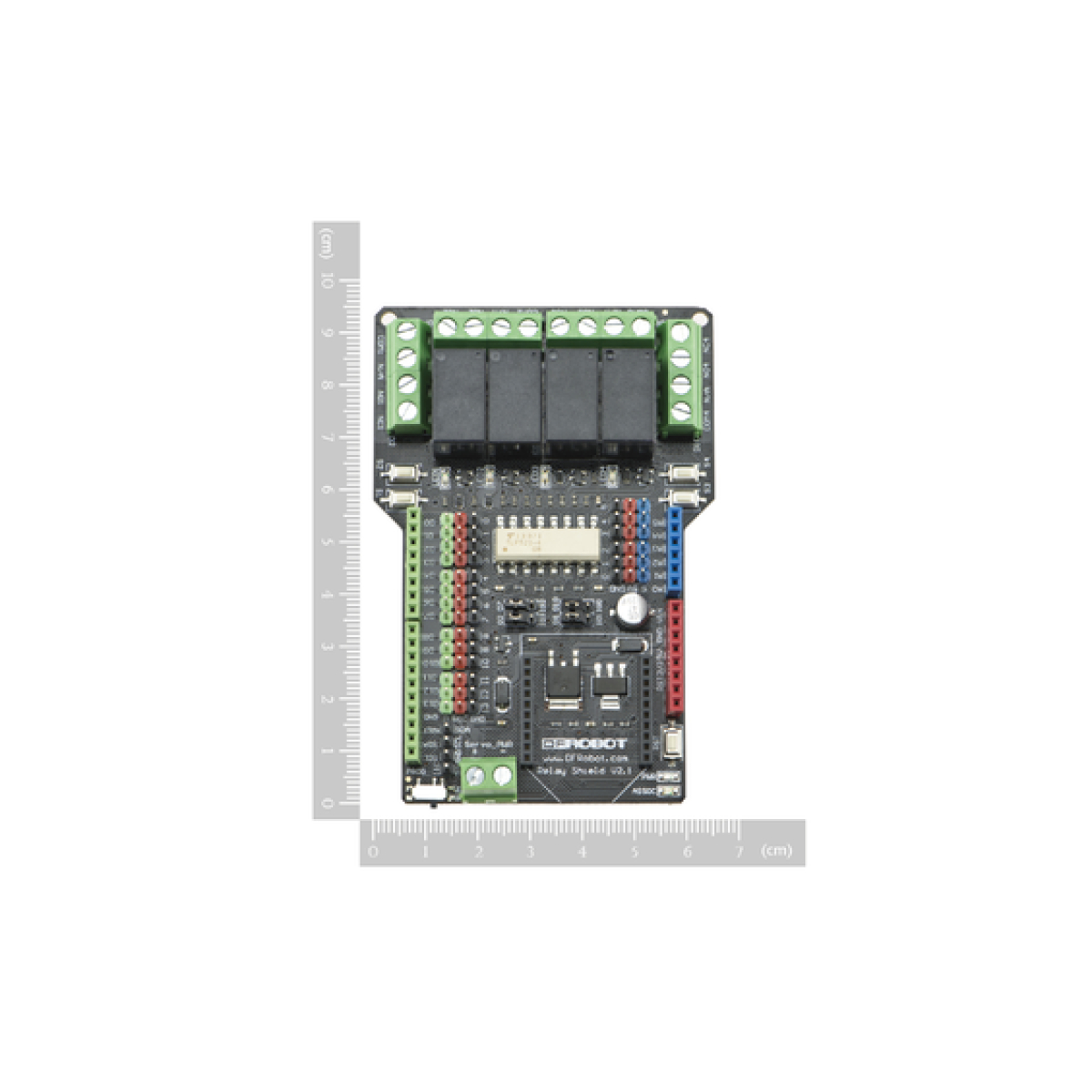

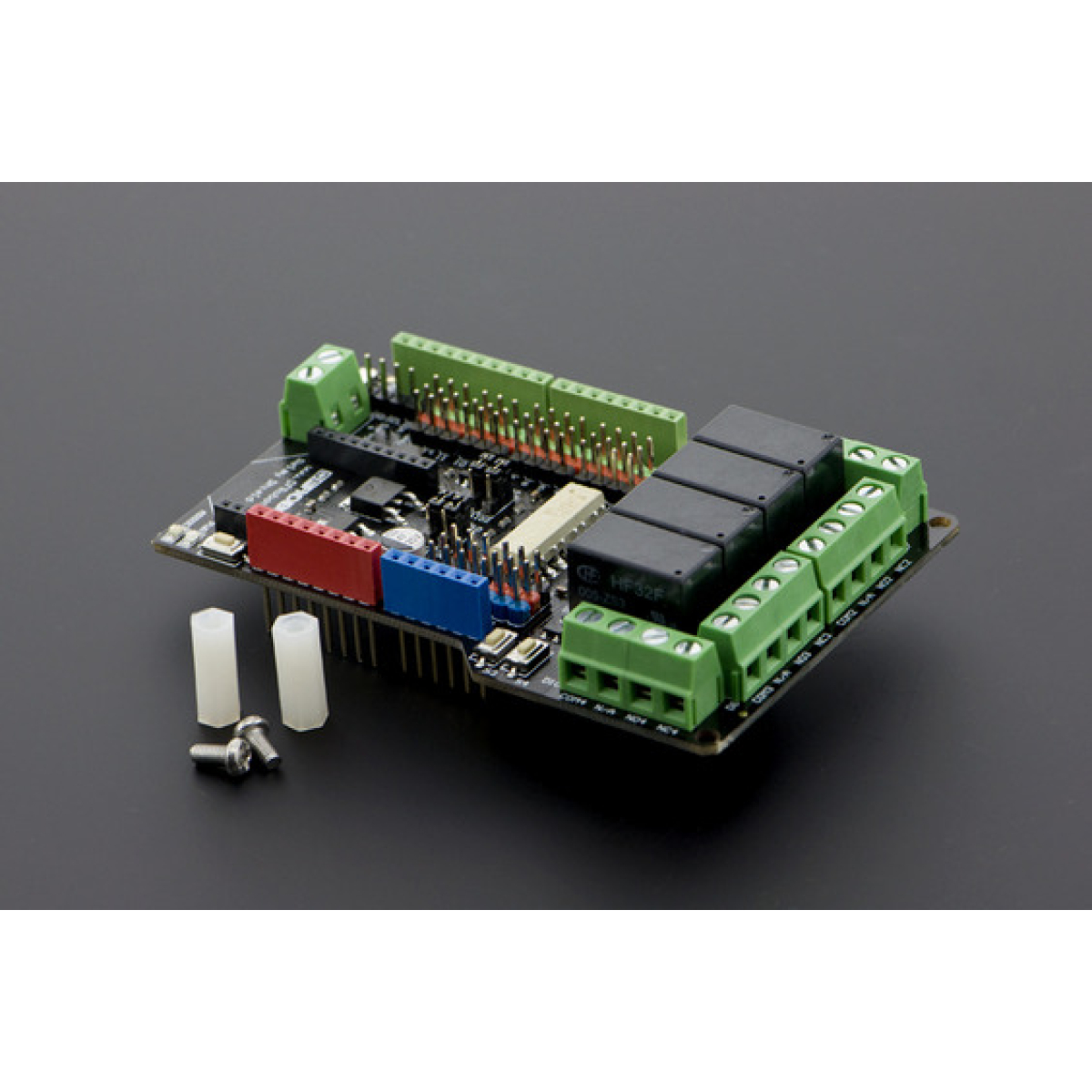

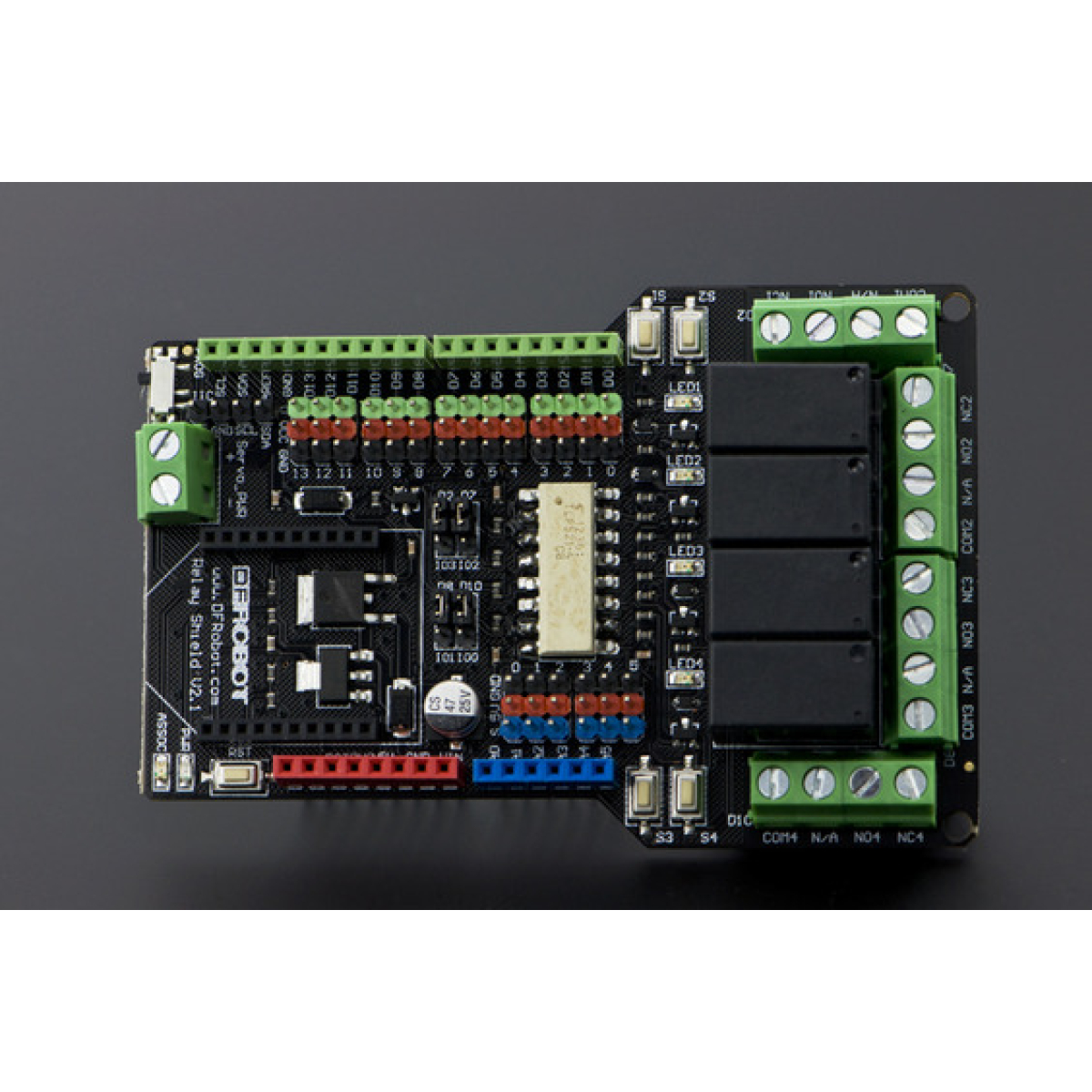

This Arduino Shield is a completely newly designed that is able to control 4 relays at a time. The max switching power DC 90W or AC 360VA gives direct control by Arduino Uno/DFRduino controllers through digital I/Os with external 9V supply. With built-in Xbee socket, it can be wireless remote controlled via Xbee/bluetooth/WPM.

This arduino relay shield is an ideal solution for home automation and robotics applications.

14 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

This Relay Shield for Arduino acts like a switch. It is commonly used to control anything over 5V such as lamps, water pumps and garage doors.

One of the most interesting projects for your boards is perhaps being able to control High power devices like Lamps, water pumps, garage doors and so on. But interfacing with high power and AC is quite a dangerous task when building the circuitry. Relays allow for interfacing an external electrical circuit like a switch. With relays you can now connect external circuit or devices directly to your Arduino.

  • Compatible with Arduino UNO Rev3

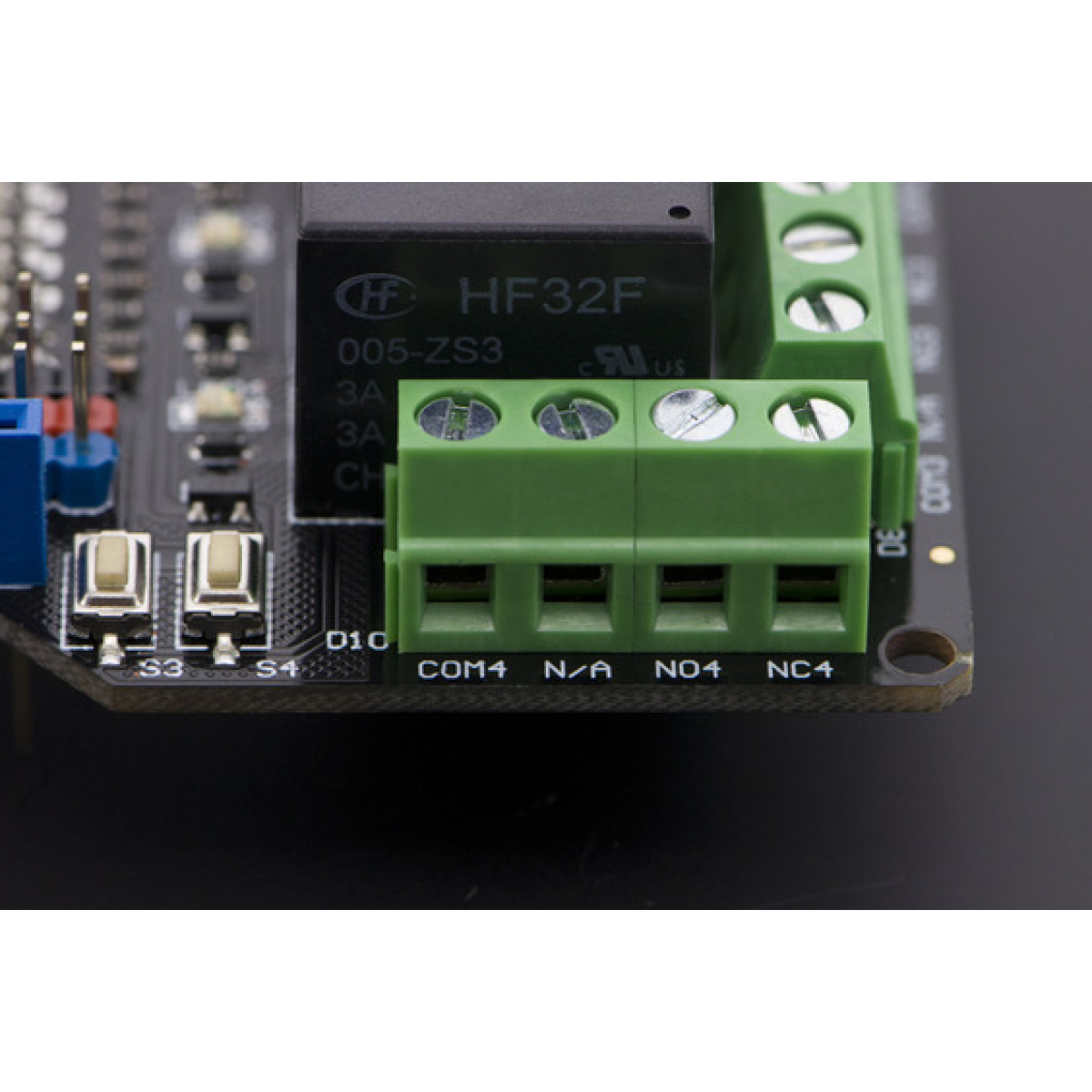

  • Each Relay has its own test button to test the connection
  • Standard DFRobot 3 Pin out
  • XBee I/O direct control
Additional information
Contact Rating

3A AC 120V / DC 24V

Max Switching Voltage

AC 240V / DC 60V (Less than 38V is recommended)

Working temperature

-30℃ to +85℃

Working Humidity

40% – 85%
