| Transmission power |
600Mw |
|---|---|
| Input voltage |
7-16V |
| Antenna gain |
2DB |
| Output impedance |
75OHM |
| Working current |
220mA/12V |
| Operating temperature |
-10~+85°C |
This TS835 FPV 5.8G 600MW 48CH Wireless AV Transmitter is perfect for the small budget multi-rotor. Works brilliantly in an atom and because of its low price you have no worries about throwing it around the sky.
A good little mod you can do is to simply solder a length of the single core wire to the SMA as this gives you more than enough range without the long hefty antenna.
- 48 channels choice to get the best transmitting quality.
- Compatible with A, B, E, and F frequency bands
- Smaller size with lighter weight.
- 48 CH compatible with all FPV 5.8g receivers.
- 5.8G 600mW 40 Channels AV wireless FPV transmitter
- Super small 200mA current for 600mW wireless transmitter power.
- 600mW transmitter power assure 5KM distance in open area,
- 5-8 KM is available if work with the bigger gain antenna.

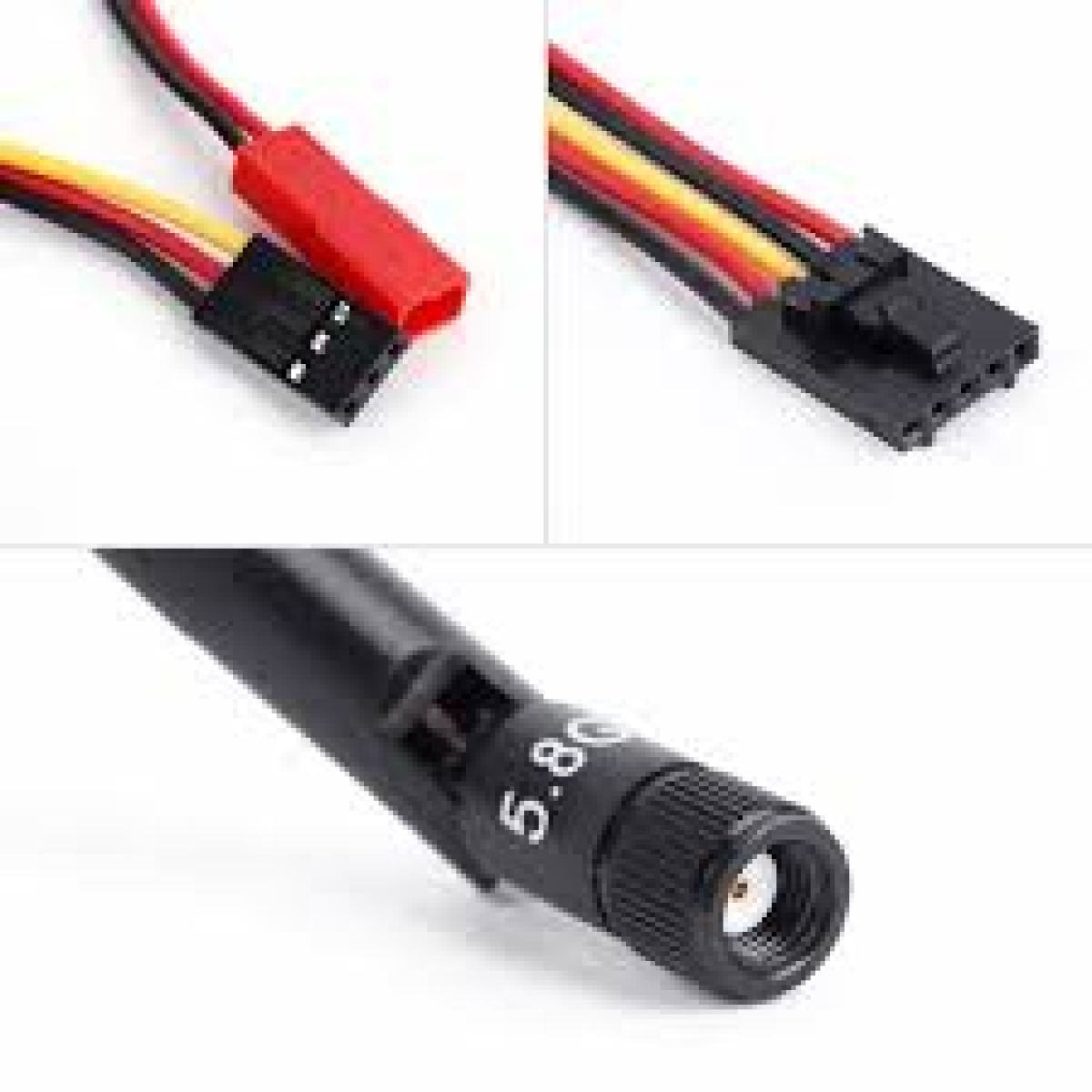

- Connector: transmitter module side RP-SMA jack, antenna RP-SMA plug.
