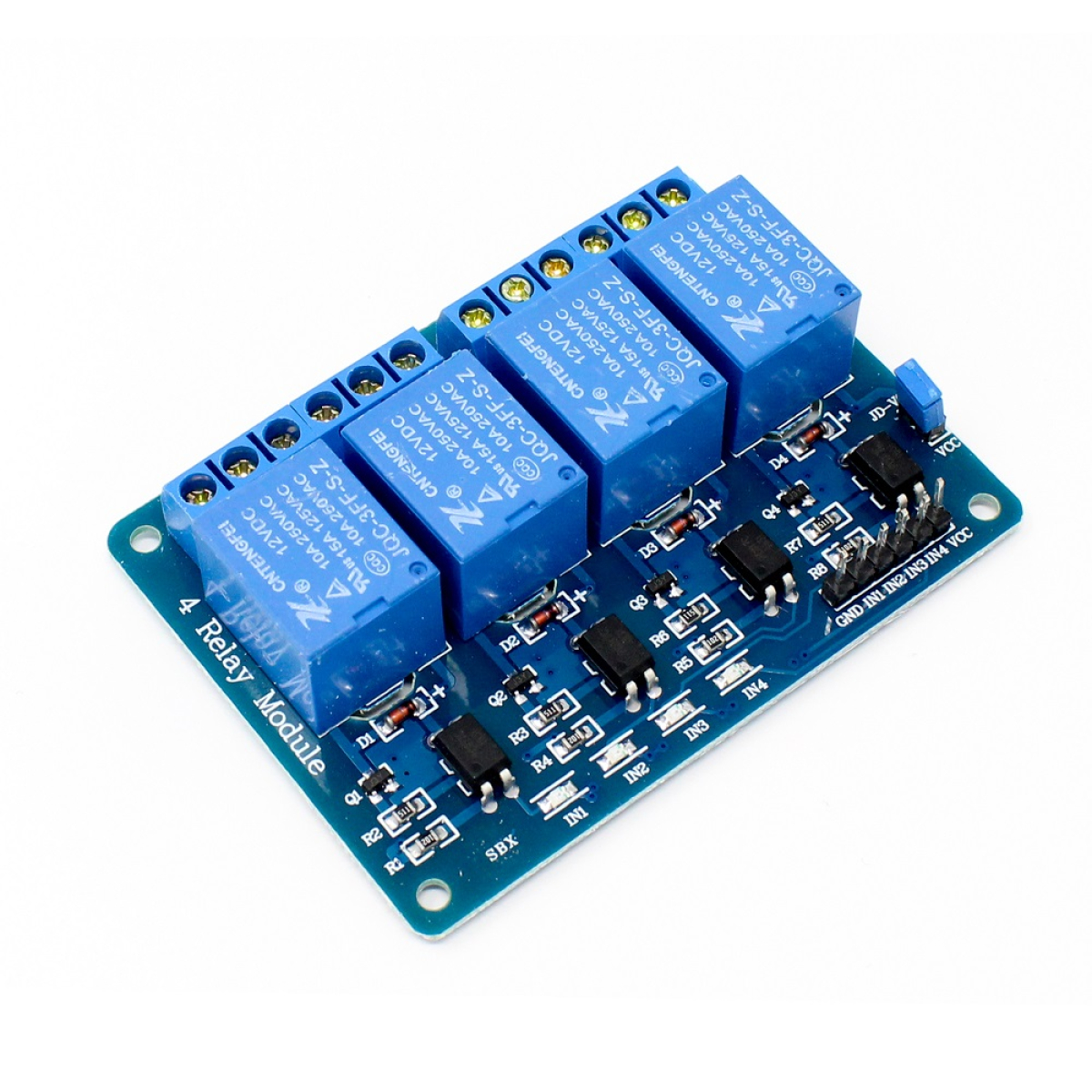

4 Channel 12V Relay Module

Name: 4 Channel 12V Relay Module
SKU: 4361
Availability: InStock

This 4 Road/Channel Relay Module (with light coupling) 12V module meet the safety standard as control areas and load area have the isolation groove. Optical coupling isolation module.

The triggering of 4 Road/Channel Relay Module is reliable, more stable. The double FR–4 circuit board design, high-end SMT process. It has power and relay operation instructions. Relays terminals (C, NC, NO) are accessible through screw terminals which makes wiring up the board very easy.

The inputs of 4 Channel 12V Relay Module are isolated to protect any delicate control circuitry.

Add to wishlist

Compare

20 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

Equipped with high-current relay 10A@250VAC / 10A@30VDC
It can control both AC and DC appliances such as Solenoids, Motors, lights, fans, etc
High-quality screw terminals (Terminal Block) provided (C, NC, NO) for quick and easy connection
Freewheeling diode to protect your microcontroller
Input Signal Pin connected to Burg stick for easy accessibility
LED Status indicators to indicate the relay ON/OFF status
Mounting holes provided
Signal input with a high-level signal, the common and often start conduction;
The relay can directly control all kinds of equipment and load;
One often opened a normally closed contact;
Blue KF301 terminal line more convenient.

Additional information

Trigger Current (mA)	20
Switching Voltage (VAC)	250@10A
Switching Voltage (VDC)	30@10A
Mounting hole dimensions	Diameter=3mm, X-axis pitch=68mm Y-axis pitch=48mm
