3S BMS-25A

Applicable to the following products (within rated power):
Electric drill, 775 motors (6A-10A), small power inverter, small power vacuum massager battery, LED lamp, 12V standby power electronic products, 12V120W car washing pump, battery, solar street lamp monitoring standby power supply, and other products.

Rated current can’t over 25A, it can’t exceed 50A per 0.5 seconds.

12 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

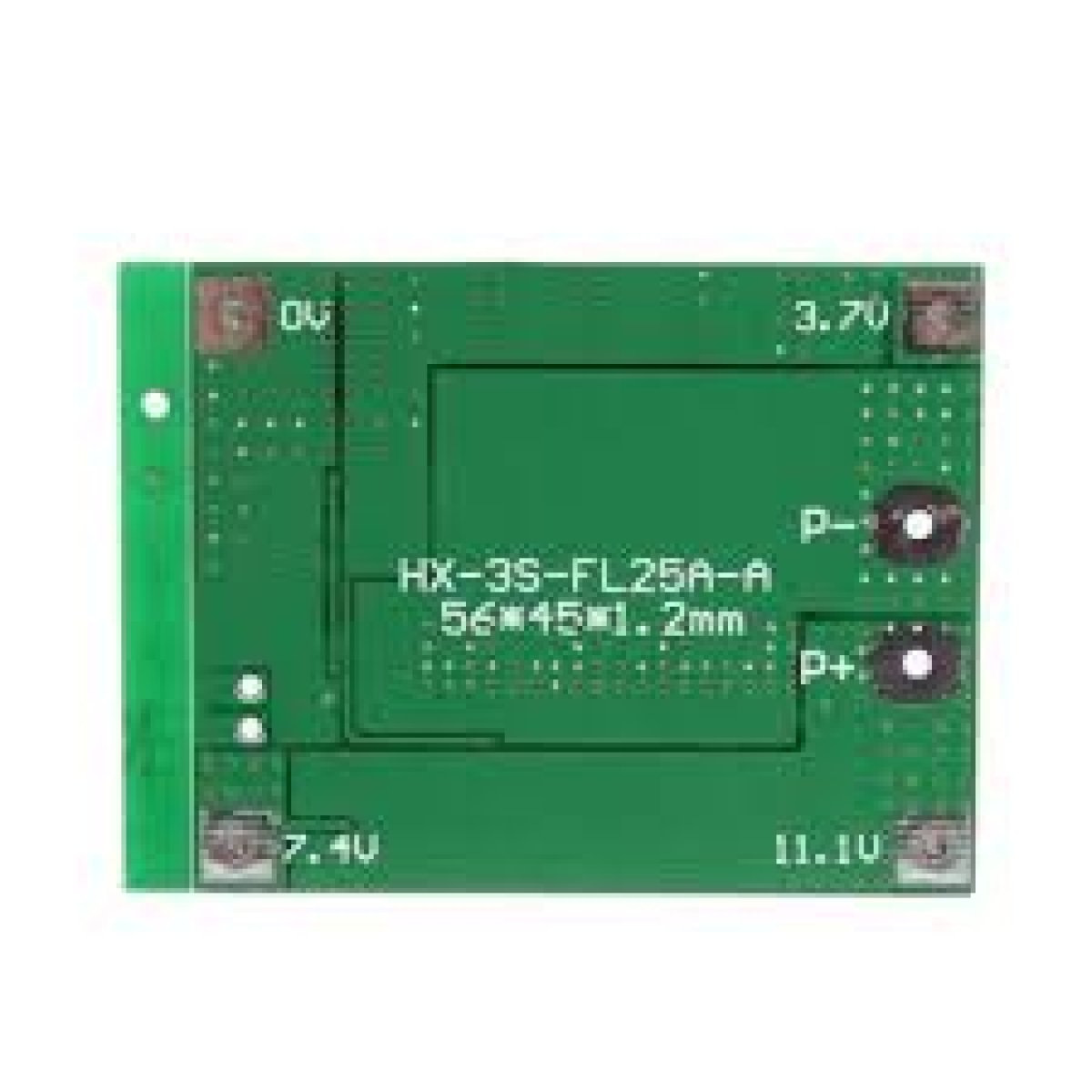

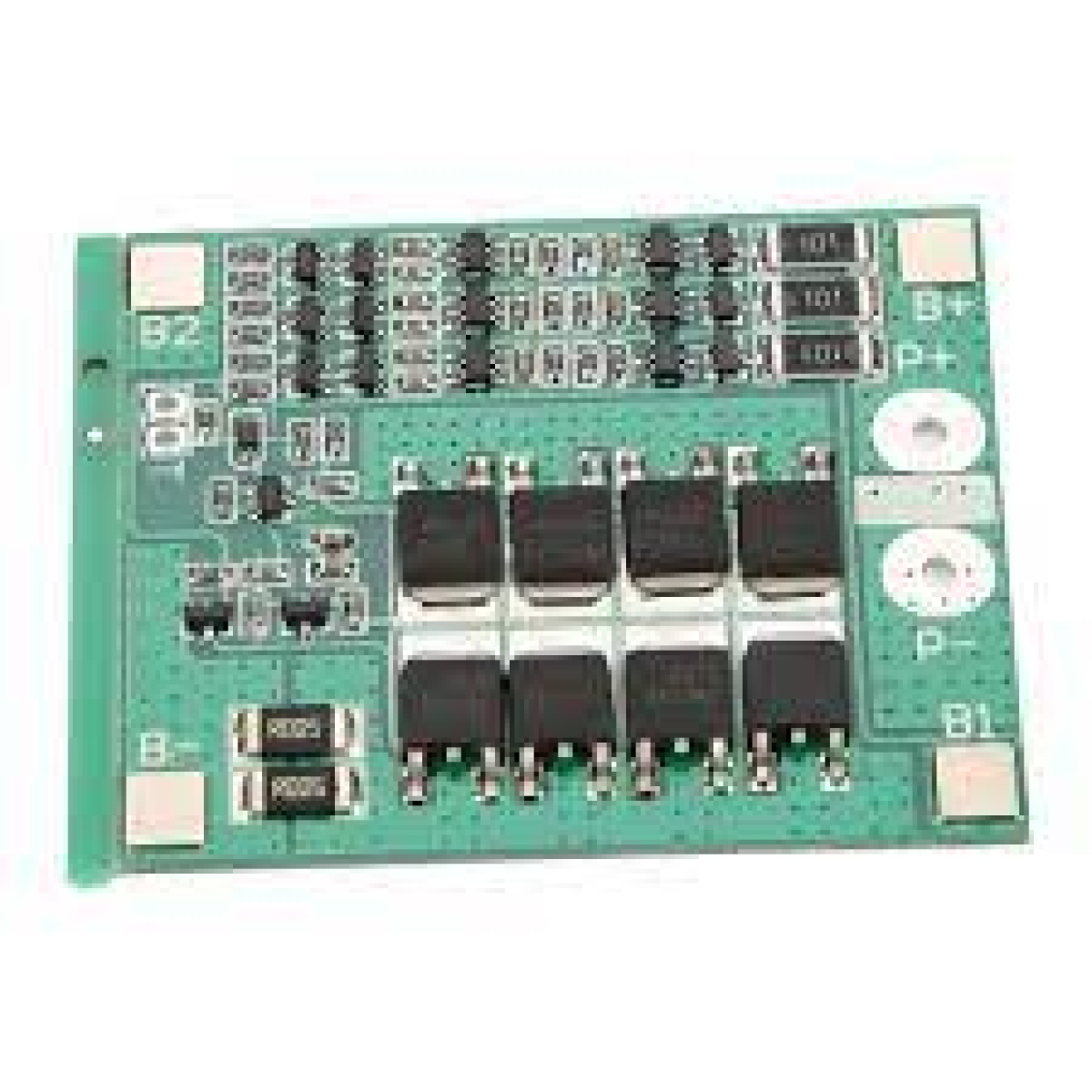

This is 3S 12V 25A 18650 Lithium Battery Protection Board 11.1V 12.6V High Current With Balanced Circuit Over Charge Over-Discharge Over Current And Short Circuit Protection Function. Board charging and discharging are the same port, the board includes the balanced circuit.
When the charge balance, the board will be a bit warm, even after disconnecting the charger, some are still in the balance, will continue to warm for a while until below the equilibrium break threshold.
The protection board cannot be used for iron lithium polymer battery (for other batteries, no matter what material, as long as the overvoltage and put voltage can be used for cutting), electric finish machinery, electric bicycle batteries, car, and motorcycle starter battery protection.
Additional information
Overcharge detection voltage (V)

4.25 ± 0.025

Over-discharge detection voltage (V)

2.50 ± 0.08

Over current Protection (A)

40

Working current (A)

25

Operating Temperature (°C)

-40 ~ +50
