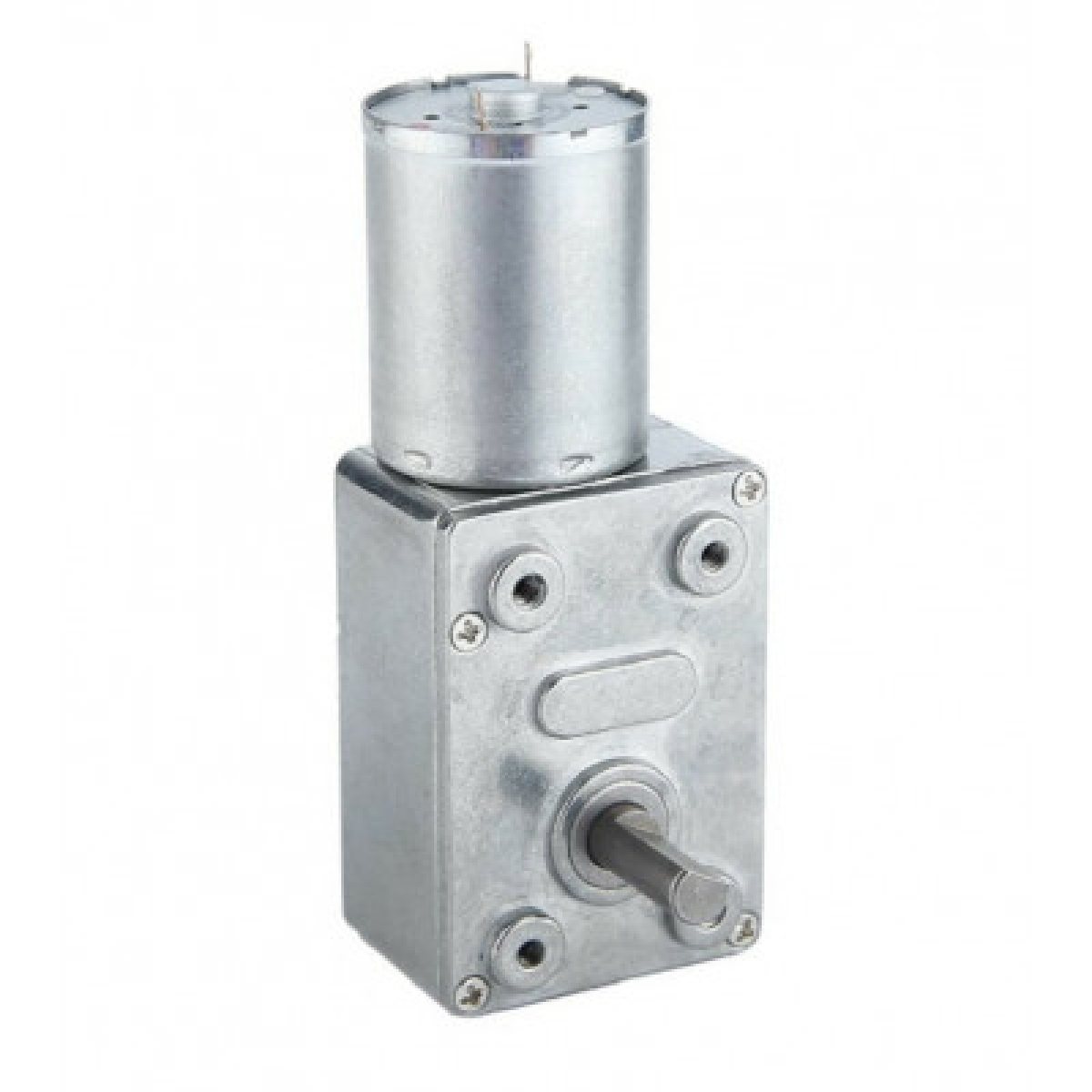

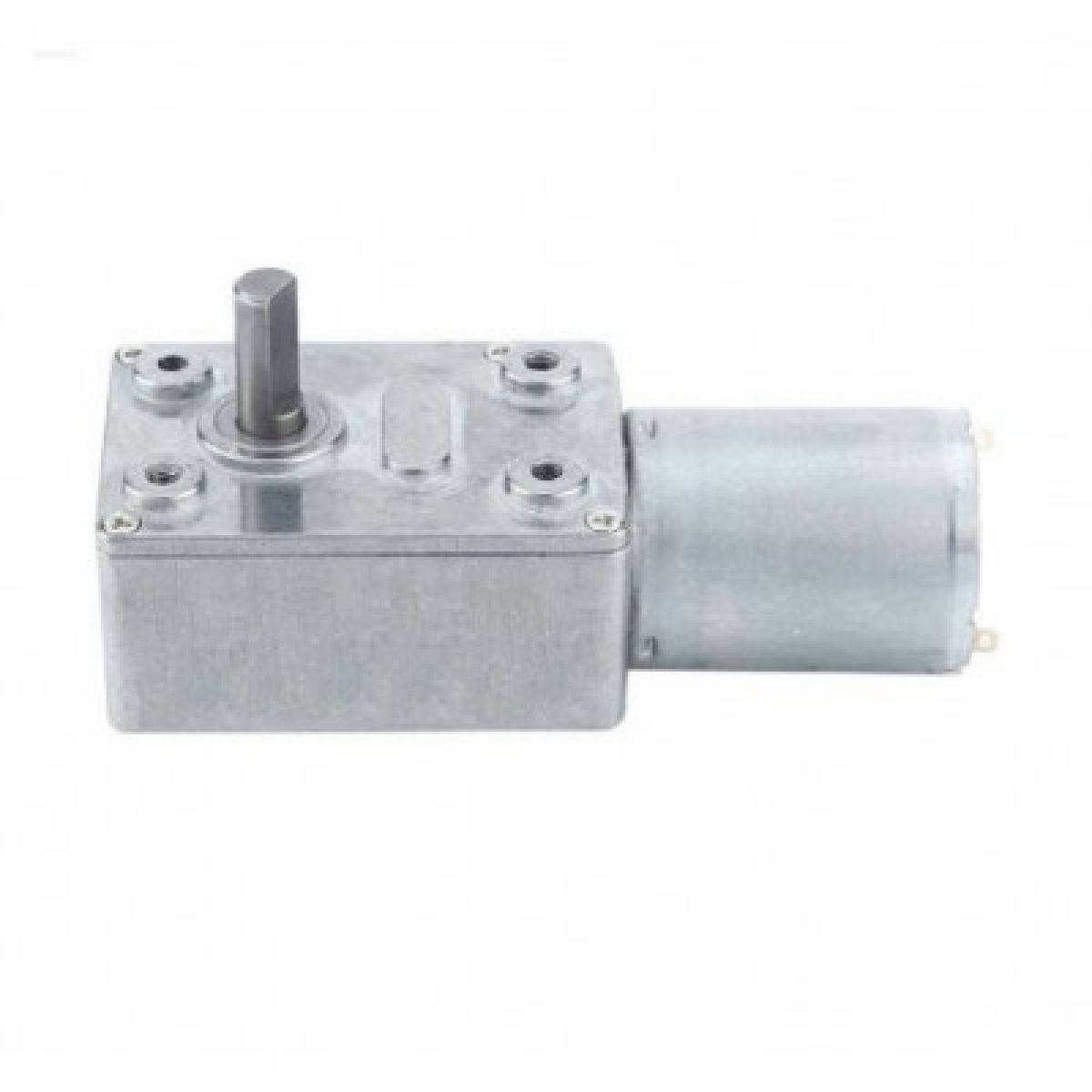

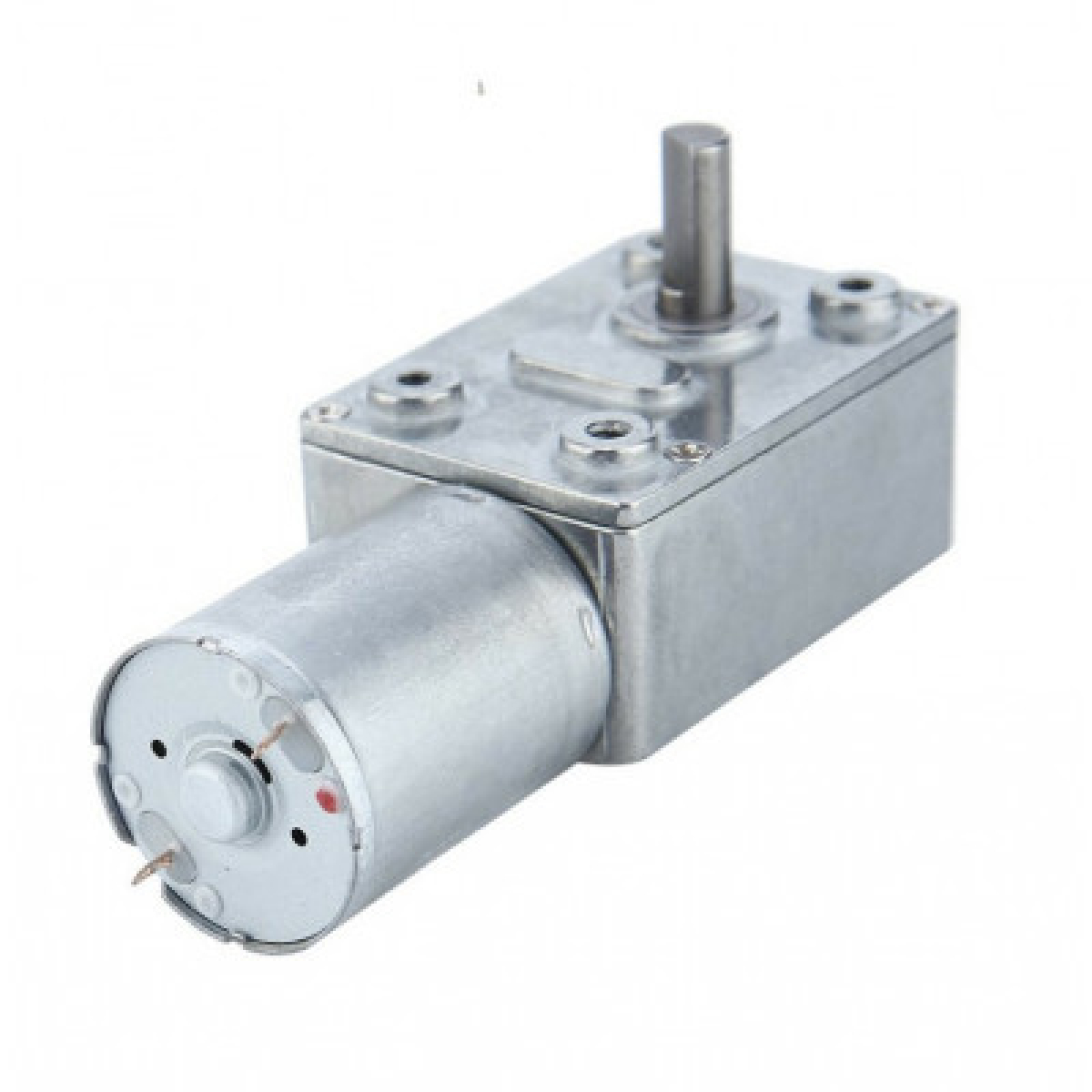

370 WORM GEAR BOX MOTOR 12V 20RPM/100RPM

Solid Shaft JGY370 DC 12V 6RPM High Torque Self-locking Strong Wheel Turbine Worm Reduction motors are Low-speed DC motors with worm metal gearboxes for high torque with permanent magnet motors known for delivering high power in a compact. These motors are Ideal for applications requiring motor speed adjustment and reversing capabilities.

18 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  1. Gearbox:High precision all-round gears,Pure copper worm gear,Ball precision gear
  2. Outer shell:Zinc alloy die-cast alloy pressure shell, stainless steel hardened Output shaft.
  3. Rotor:Silver copper nickel commutator and copper wire have super strong electrical conductivity and high-density molecular coating which makes the motor powerful and reliable.The Motor rotor is made of pure copper, with low resistance and electrical conduction. the rotor core is made from high-quality strong Silicon steel with low reluctance.
  4. High-quality carbon brush: Better commutation performance High-quality carbon brush are used which provides Good thermal conductivity and low friction, the low wear of carbon brushes
  5. Field magnet:A high-strength magnet with a small volume, lightweight, is provided for, low energy consumption, Strong power, and greater torque
Additional information
Rated Voltage

12V

Revolving Speed

20RPM

Total Body Length

81 MM
