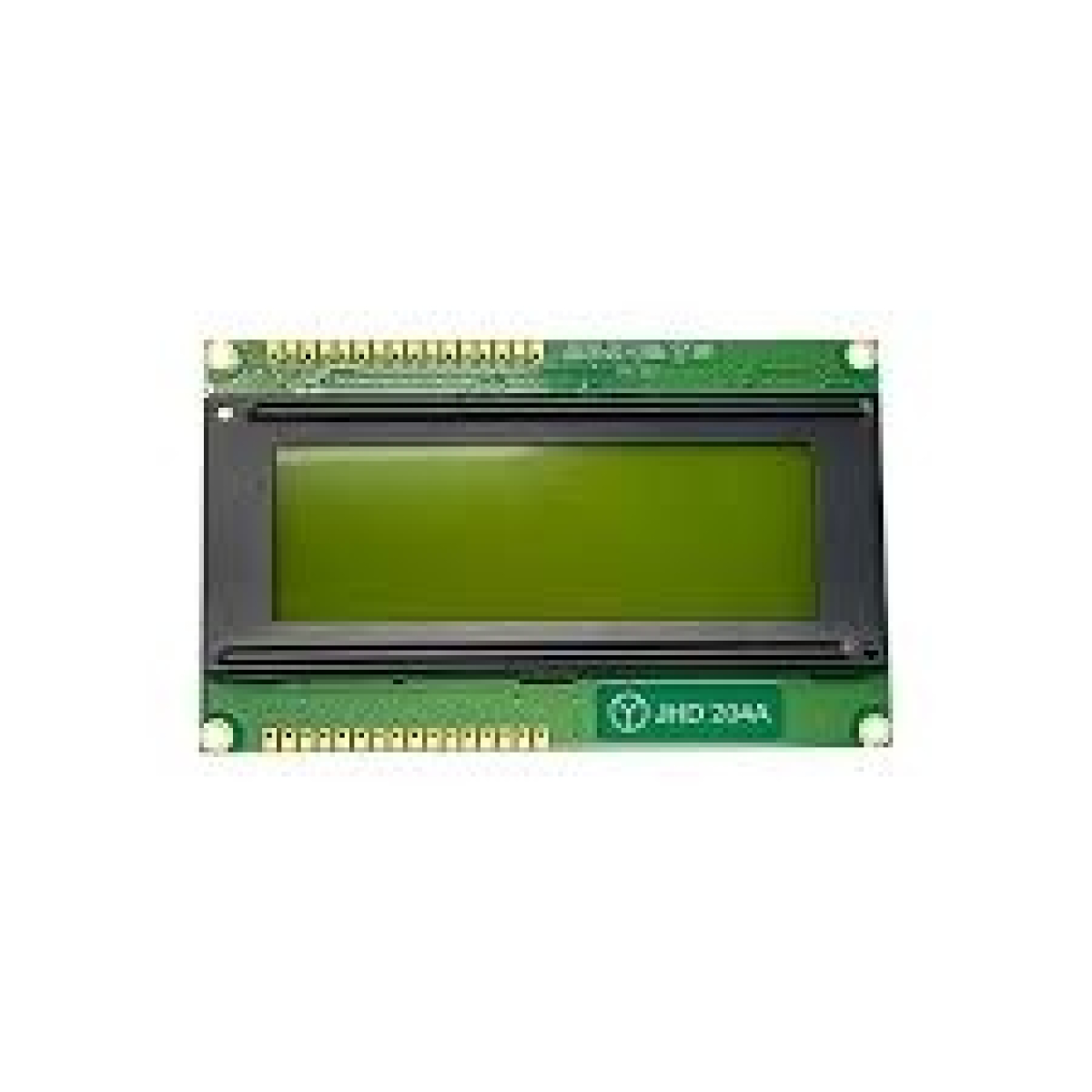

Original JHD 20×4 2004 character LCD Display

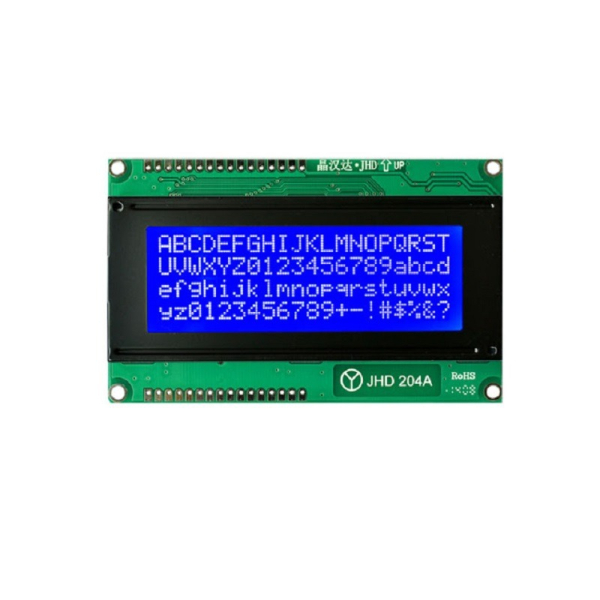

This is an 20×4 lcd display Parallel LCD Display that provides a simple and cost-effective solution for adding a 20 x 4 Black/White on RGB Liquid Crystal Display into your project. The display is 20 20-character by 4-line display that has very clear and high-contrast white text upon a Blue/ Yellow-Green background/backlight.

This is the great Blue/ Yellow-Green backlight  lcd display. It is fantastic for Industrial/Electronics-based projects. This20x4 lcd display Parallel LCD Display with Blue/ Yellow-Green Backlight is very easy to interface with Arduino or Other Microcontrollers.

20 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

Display construction: 20 Characters * 4 Lines.
Display mode: STN.
Display Type: Positive, Transmissive.
Backlight: LED/5.0V.
Viewing direction: 6 o’clock.
Operating temperature: -20 to 70℃.
Storage temperature: -30 to 80℃.
Controller: SPLC780D or Equivalence.
Driving voltage: Single power.
Driving method: 1/16 duty, 1/5 bias.
Type: COB (Chip On Board).
Number of data lines: 4/8-bit parallel.
Connector: Pin.

Additional information
Display construction

20 Characters * 4 Lines

Viewing direction

6 o’clock.

Operating temperature

-20 to 70℃.

STORAGE TEMPERATURE

-30 to 80℃.
