24V T RELAY T90

Applications

  • Switching circuits
  • Home projects
  • To control heavy loads
  • Used in safety circuits
  • Used in automobiles

13 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

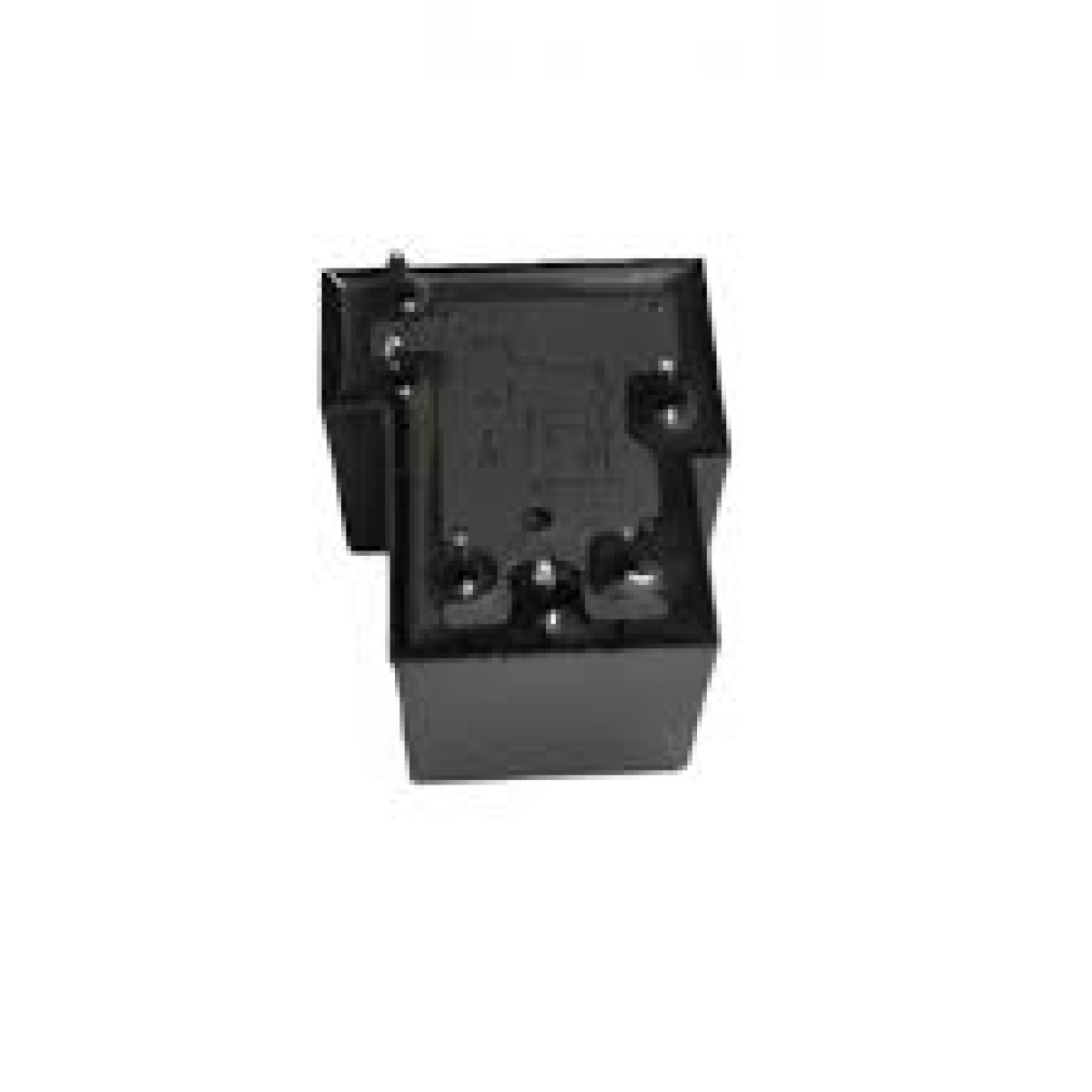

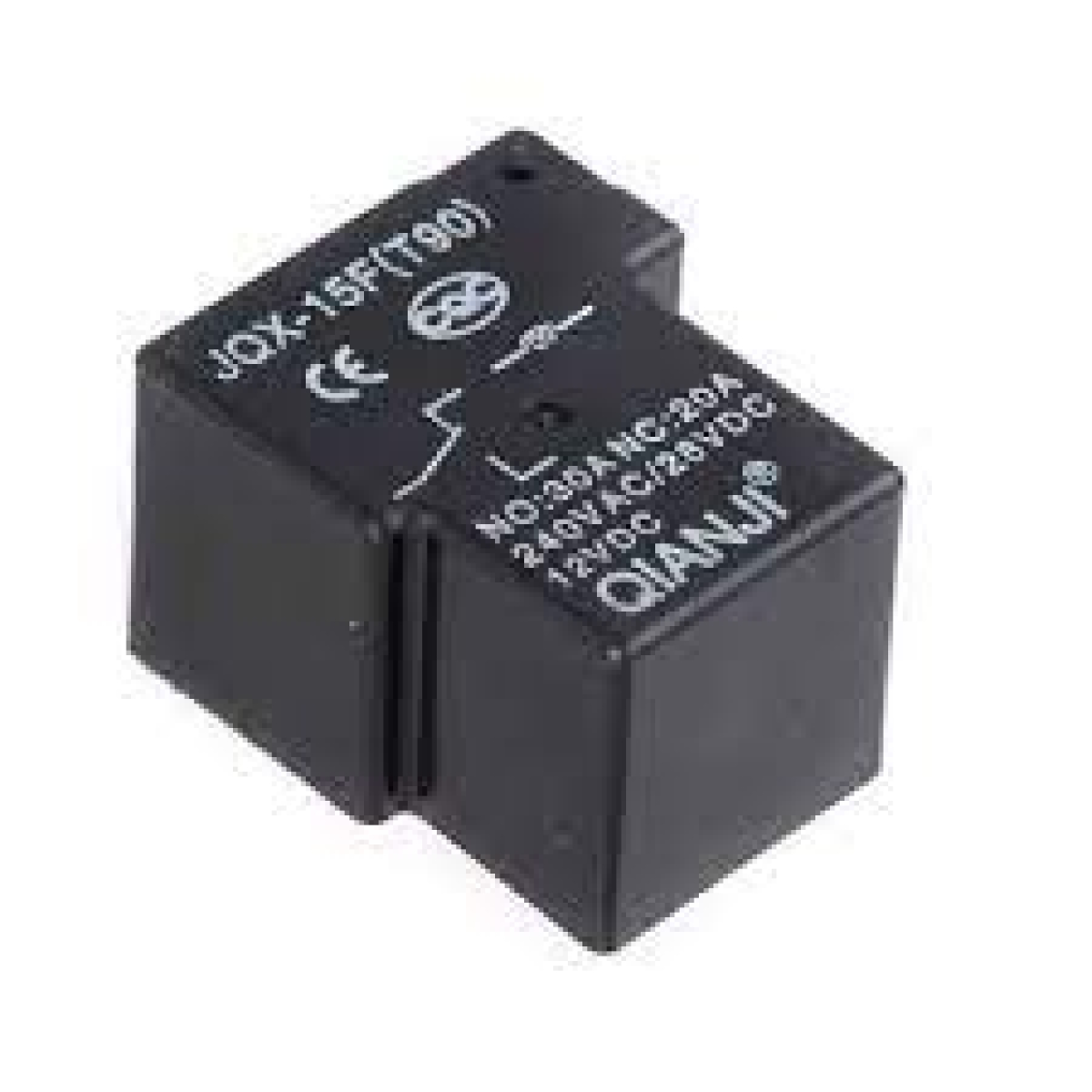

This Power relay is used for switching high current AC devices such as Air Conditioner,  Electric Heater, Geyser etc. which need to be controlled from microcontroller or sensor output signals. 24V T Type Relay can switch load of 30A at 220-240v connected to it. This relays comes with 6 Pins shown in the image.

This relay can handle high power loads which a microcontroller/circuit cannot control directly. The relay coils can be energised by a low power signal and the relay output will switch the AC load on/off based on the status of the coil.

Using relays to control your high power AC loads will also provide electrical isolation between the load and your low power circuit. Any malfaction on either side will not affect the other circuit section.

We also sell similar relay in different operating voltage ratings. Chose relay coil voltages based on the voltage available in your circuit.

Additional information
NC Contact Rating

30A @ 240V AC / 28V DC

NO Contact Rating

20A @ 240V AC / 28V DC

Operating Current

0.075A

Coil Resistance

660 E/ 660 ohm

Dimension(LxWxH) (mm)

31x27x19 (mm)
