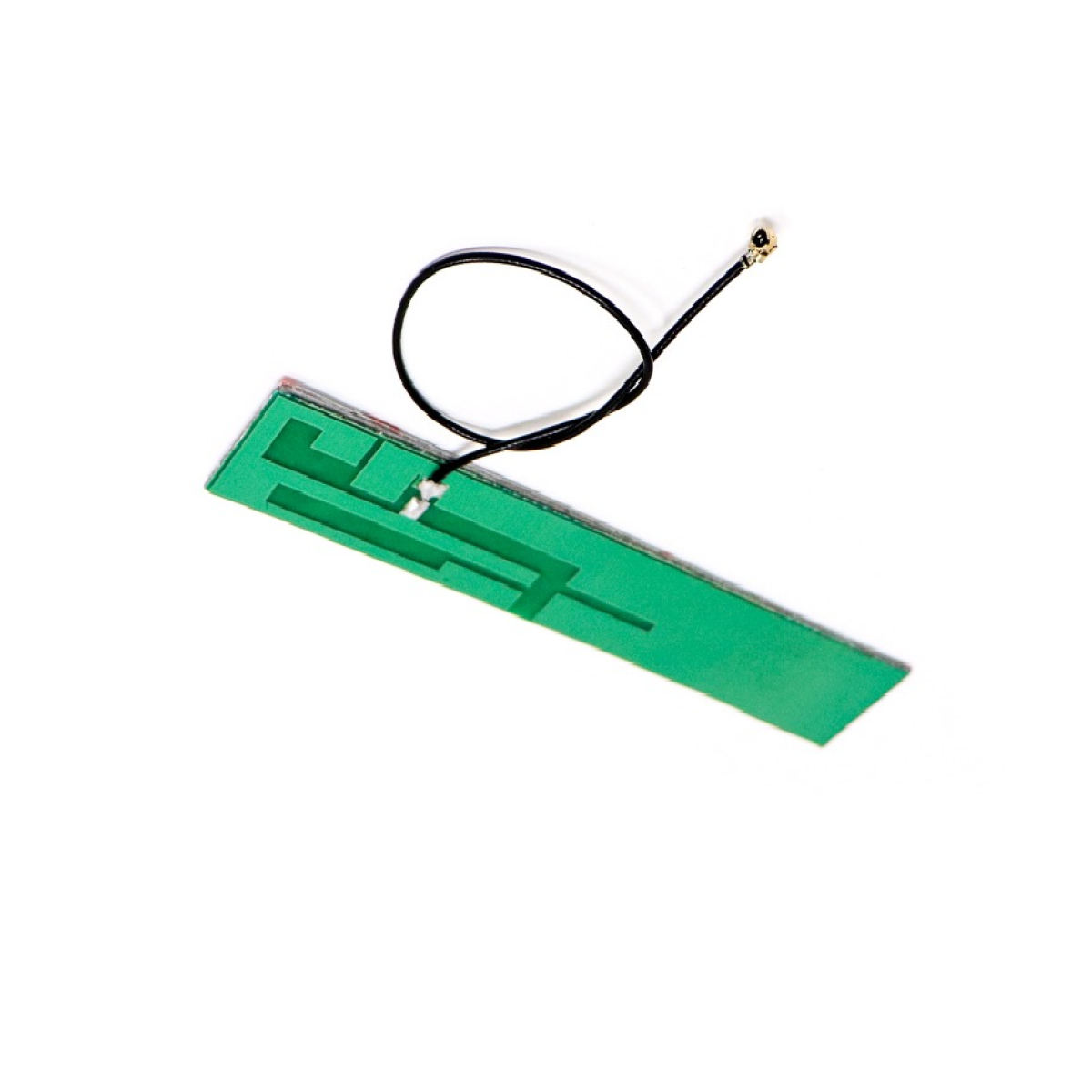

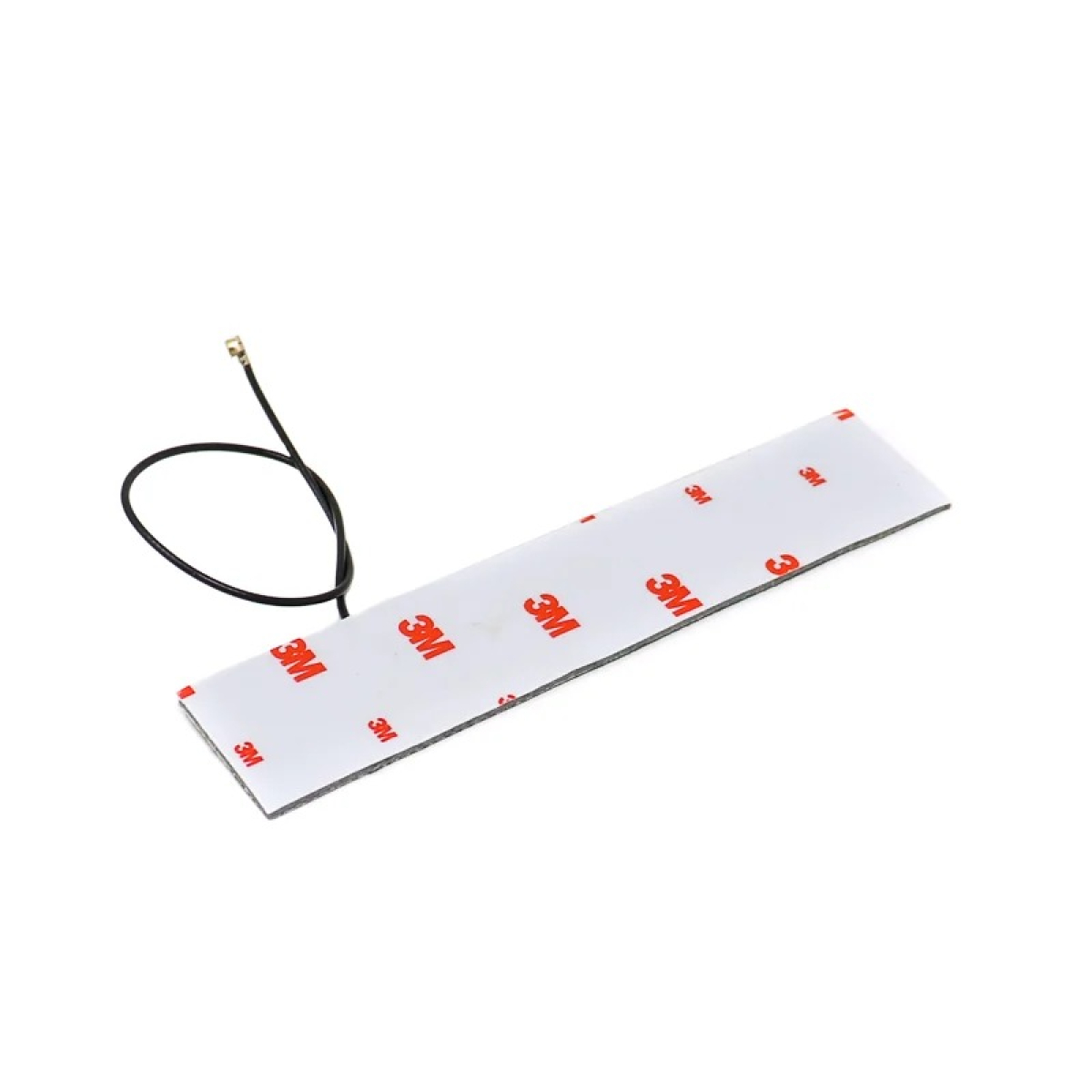

2400–2500 MHz 3 dBi Sticker Antenna(V2.0)

This is 2400–2500 MHz 3 dBi Sticker Antenna(V2.0).

This is PCB Antenna having a frequency of 2400–2500 MHz and  3dBi gain. PCB Antenna is a wireless device to receive and transmit signals, it has been widely used in telecommunication to communicate. One of the main reasons to use a PCB (printed circuit board) antenna is the reduced overall cost of the radio module.

Add to wishlist
Compare
20 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  1. Frequency (MHz) :2400–2500 MHz
  2. Gain:~3 dBi
  3. Impedance (Ω): 50
  4. Cable Type: RG-178
  5. Cable Length: 5″
  6. Connector Type: U.FL (Female)
  7. VSWR :< 2.0
  8. Compact Size
  9. High quality
  10. Low cost
  11. 3M high-quality adhesive
  12. Masking for corrosion-free
Additional information
GAIN

~3 dBi
HPBW

H: 3600; V: 300
OPERATIONAL TEMPERATURE

-30° to 60° C
HOUSING

3M Adhesive Tape
