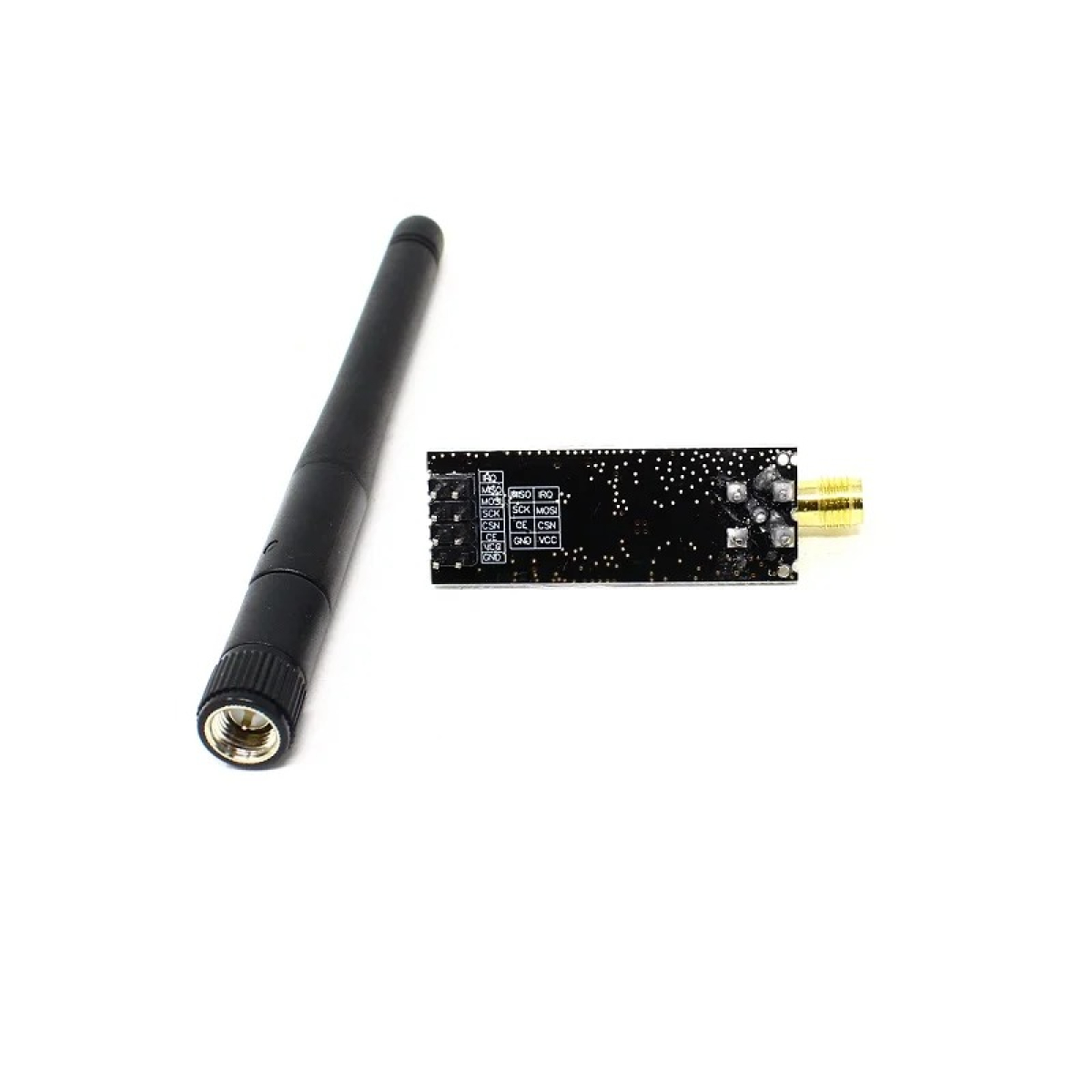

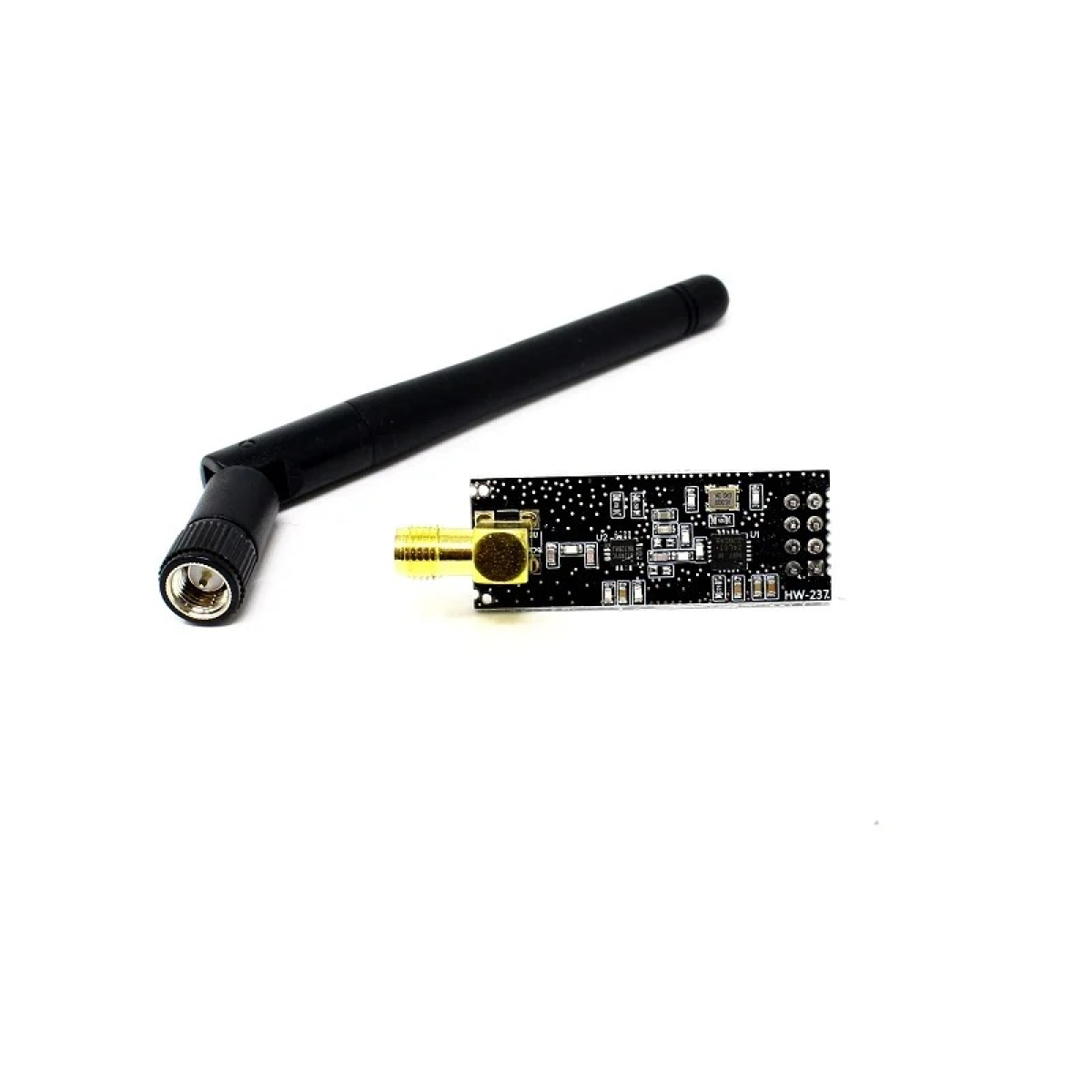

2.4GHz NRF24L01+PA+LNA SMA Wireless Transceiver Antenna

Name: 2.4GHz NRF24L01+PA+LNA SMA Wireless Transceiver Antenna
SKU: 3268
Availability: InStock

This transceiver IC operates in the 2.4GHz band and has many new features! Take all the coolness of the 2.4GHz NRF24L01+PA+LNA SMA Wireless Transceiver Antenna and add some extra pipelines, buffers, and an auto-retransmit feature – very nice!

This board features a reverse polarized SMA connector for maximum RF range. And there is PA and LNA circuit on board, with the external antenna it can reach long distance than the one without these parts.

This module comes with the 2.4G antenna (2DB), with a 250Kbps transmission rate on open-air it can reach the 800-1K meters communication distance.

Add to wishlist

Compare

18 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

It uses 2.4GHz global open ISM band, with license-free.
Transmit power is greater than +20 dBm.
Support six-channel data reception.
2Mbit/s speed makes high-quality VoIP possible
Multi-frequency points: 125 frequency points meet the needs of multi-point communications and frequency hopping.
Low cost: integrated with high-speed signal processing parts associated with RF protocol, such as: automatically re-send lost packets and generate acknowledge signal;
SPI interface facilitates the communication with MCU I/O port.
Facilitate the development for customers, without development RF part.
Software programming is fully compatible with NRF24L01 modules.

Additional information

Input Supply voltage (V)	3 ~ 3.5 (recommended 3.3V)
Working current in transmit mode (mA)	115
Maximum output power (dBm)	+20
Power-down mode current (μA)	4.2
