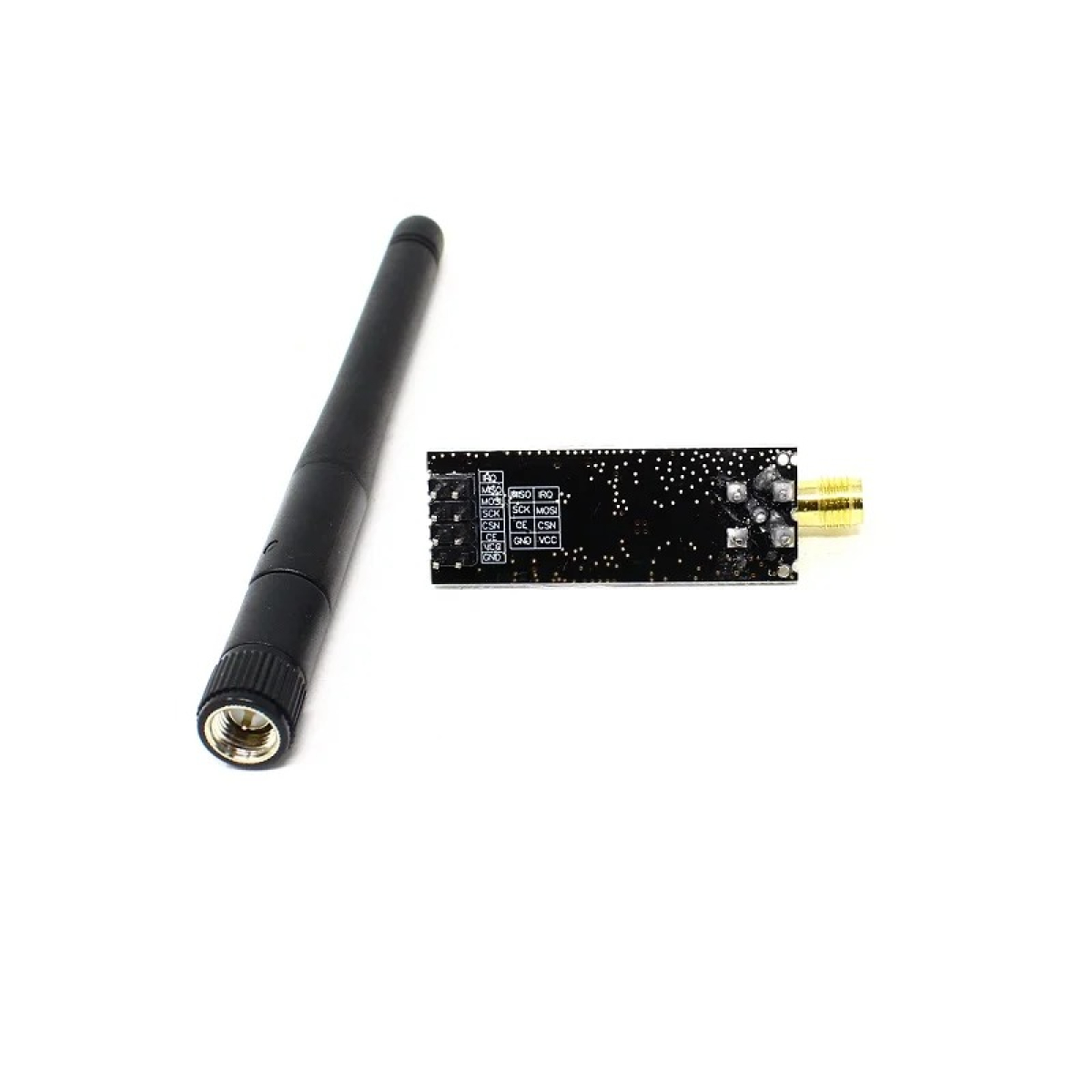

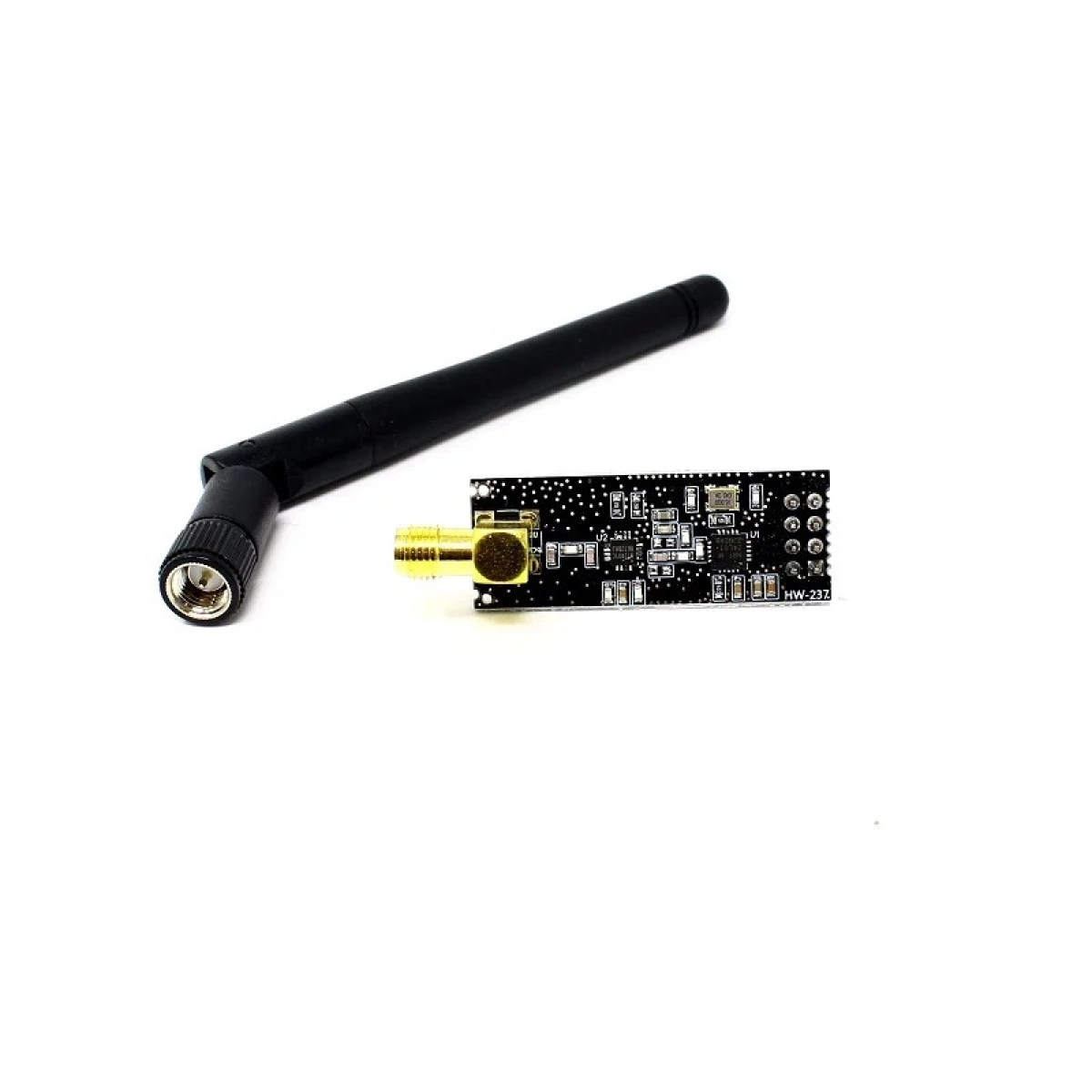

2.4GHz NRF24L01+PA+LNA SMA Wireless Transceiver Antenna

The NRF24L01 module is the latest in RF modules. This module uses the 2.4GHz transceiver from Nordic Semiconductor, the NRF24L01+. This transceiver IC operates in the 2.4GHz band and has many new features! Take all the coolness of the 2.4GHz NRF24L01+PA+LNA SMA Wireless Transceiver Antenna and add some extra pipelines, buffers, and an auto-retransmit feature – very nice!

20 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  1. Voltage: 3-3.6V (recommended 3.3V) V.
  2. Maximum output power: +20dBm.
  3. Power-down mode current: 4.2uA.
  4. Operating Range: 1Km
  5. Antenna Gain (peak): 2Dbi.
  6. 2MB rate (Open area): 520m.
  7. 1MB rate (Open area): 750m.
  8. 250Kb rate (Open area): 1100m.
  9. It uses 2.4GHz global open ISM band, with license free.
  10. SPI interface facilitates the communication with MCU I/O port.
Additional information
Input Supply voltage (V)

3 ~ 3.5 (recommended 3.3V)

Working current in transmit mode (mA)

115

Maximum output power (dBm)

+20

Receiver sensitivity

-92dBm in 2Mbps mode
-95dBm in 1Mbps mode
-104dBm in 250kbps mode
