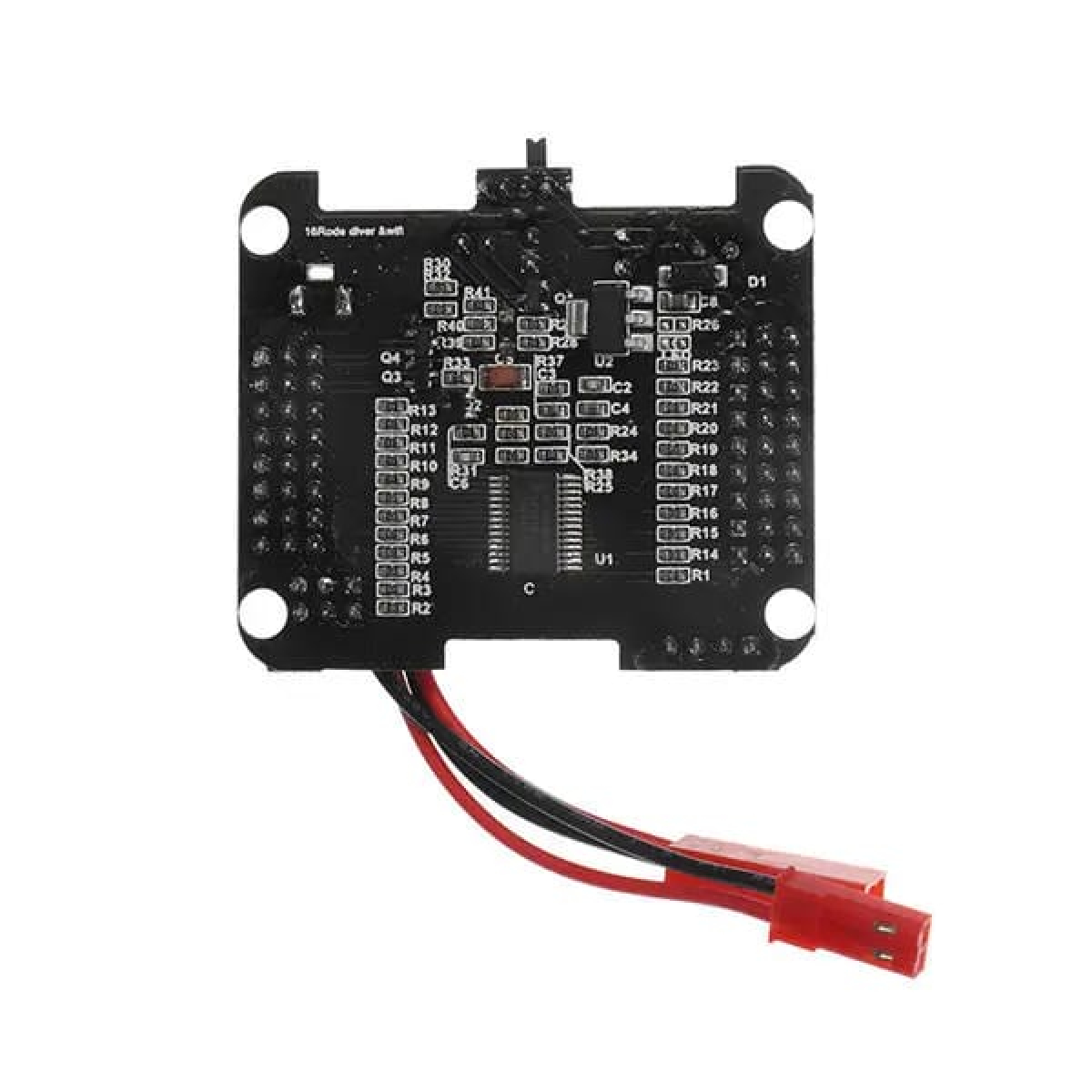

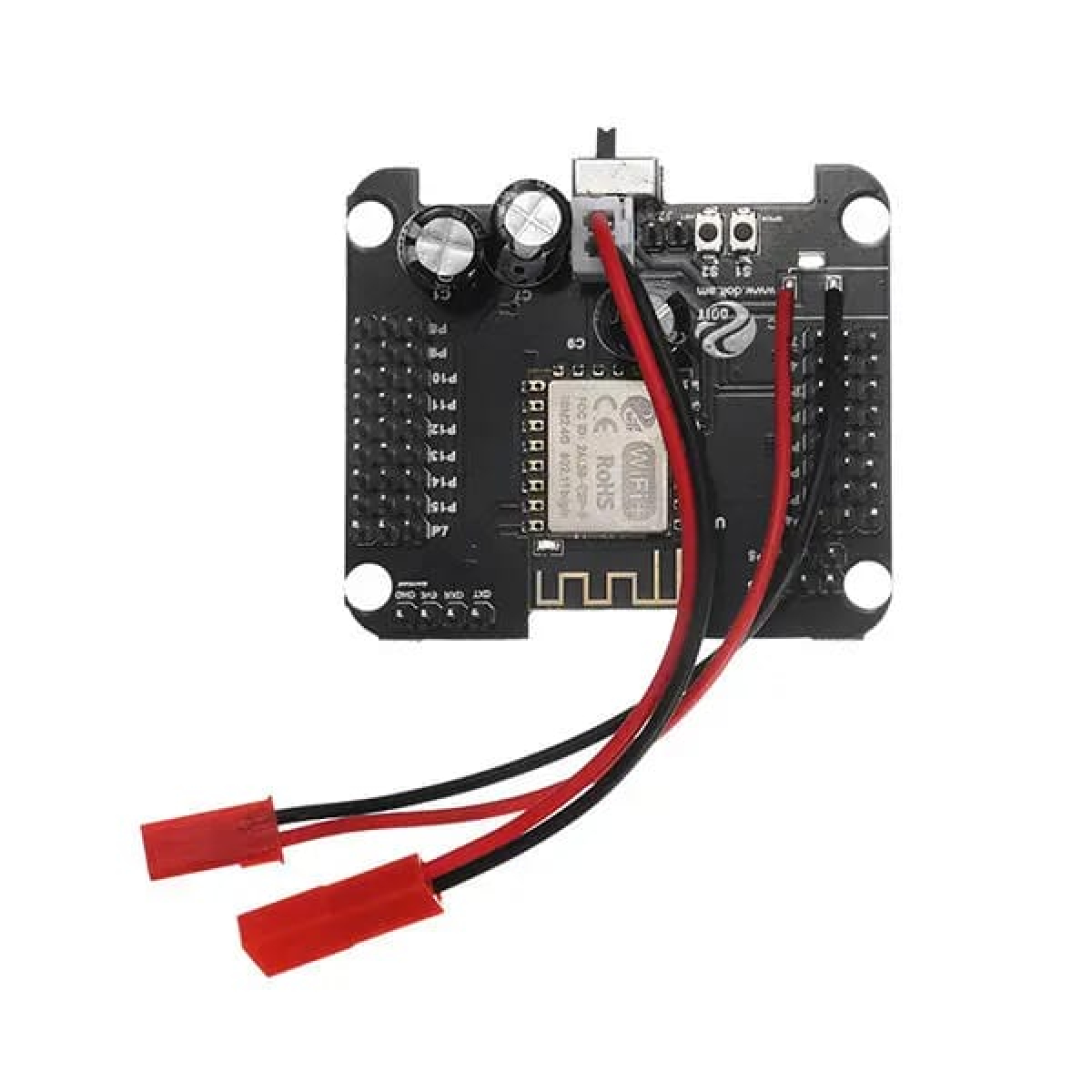

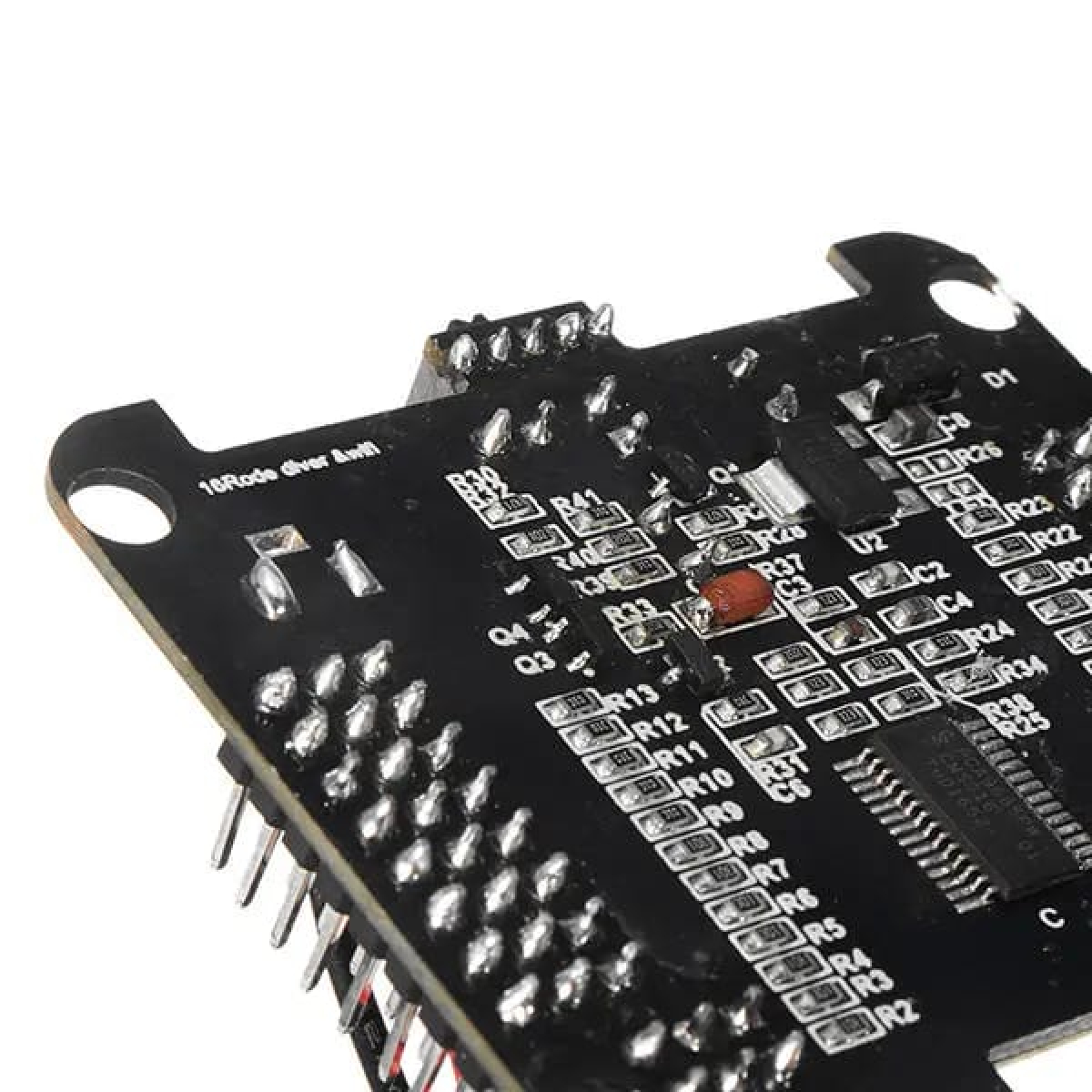

18DOF Controller Board

ViVi Humanoid Robot Control Panel ESP-F WiFi Module R & D leads the serial TTL pin to set the EN, STATE button.

– The product can complete the device TTL port to WiFi/cloud data real-time transparent transmission, with low power control, power status indication and other functions.

– The module can directly replace the original wired serial port, to achieve embedded data transmission and control equipment.

– It’s Based on ESP-F high-performance WiFi module

16 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

Features:

1. Compatible with the original wifi transparent transmission module electrical interface and physical interface

2. Robot firmware is reliable and stable, support WEB interface configuration download, graphics action download programming

3. Support serial AT command

4. Support reprogrammable, OTA firmware upgrade

5. Serial and WiFi data in real time seamless transmission

6. Built-in HTTP Web Server, support web configuration parameters

7. Serial port support set baud rate, data bits, parity, stop bit, Subcontract time

8. Supports reconnection in WiFi STA mode, reconnection in TCP client mode

  1. 9. WiFi support AP, STA, AP + STA three modes
Additional information
Maximum operating current

3000ma

Working temperature

40℃-125℃

Supply Voltage

4.5V ~ 6.4V

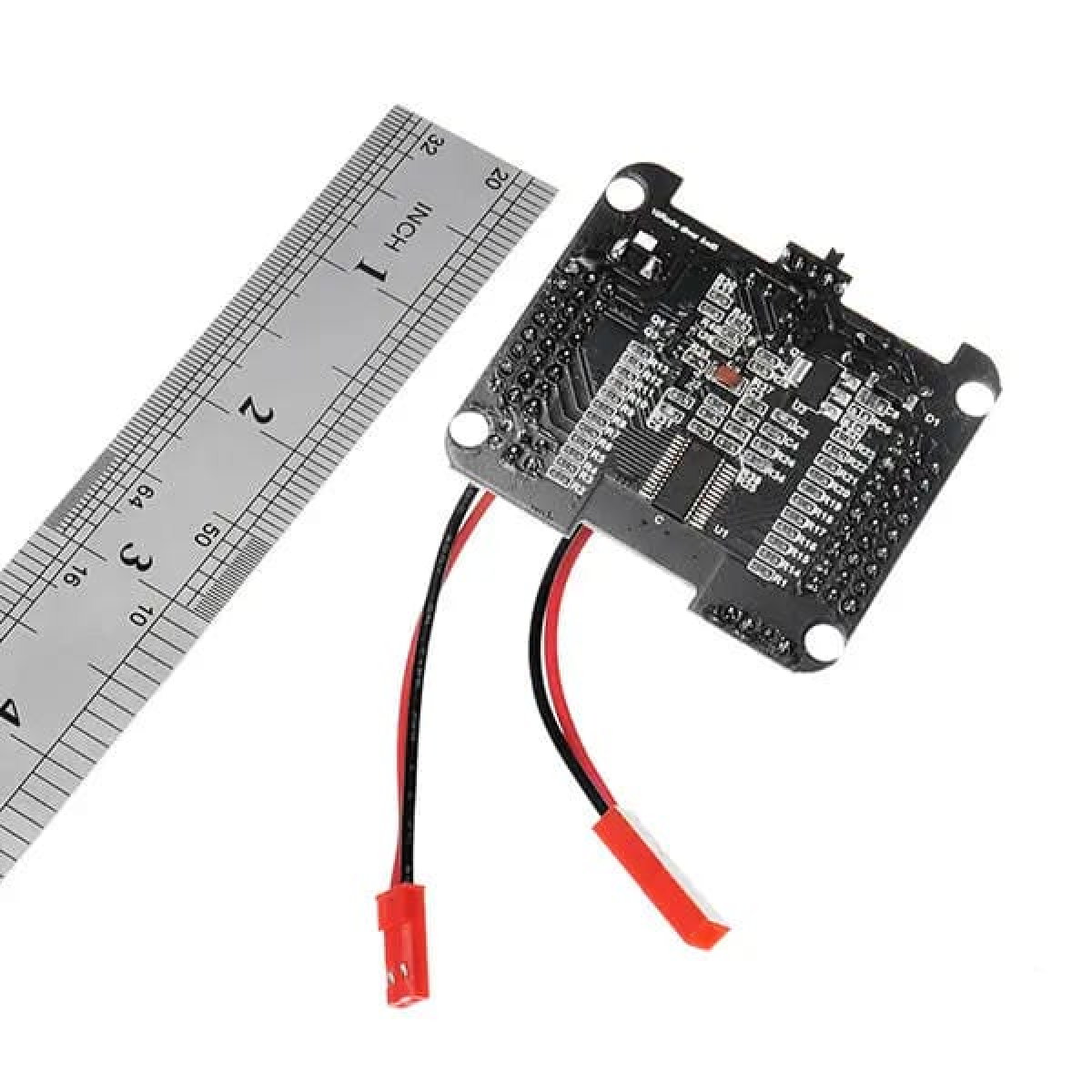

OVERALL SIZE

24x16x3

Support baud rate( BPS )

300/600/1200/2400/4800/9600/19200/38400/57600/74800
/115200/230400/460800/921600/1843200/3686400
