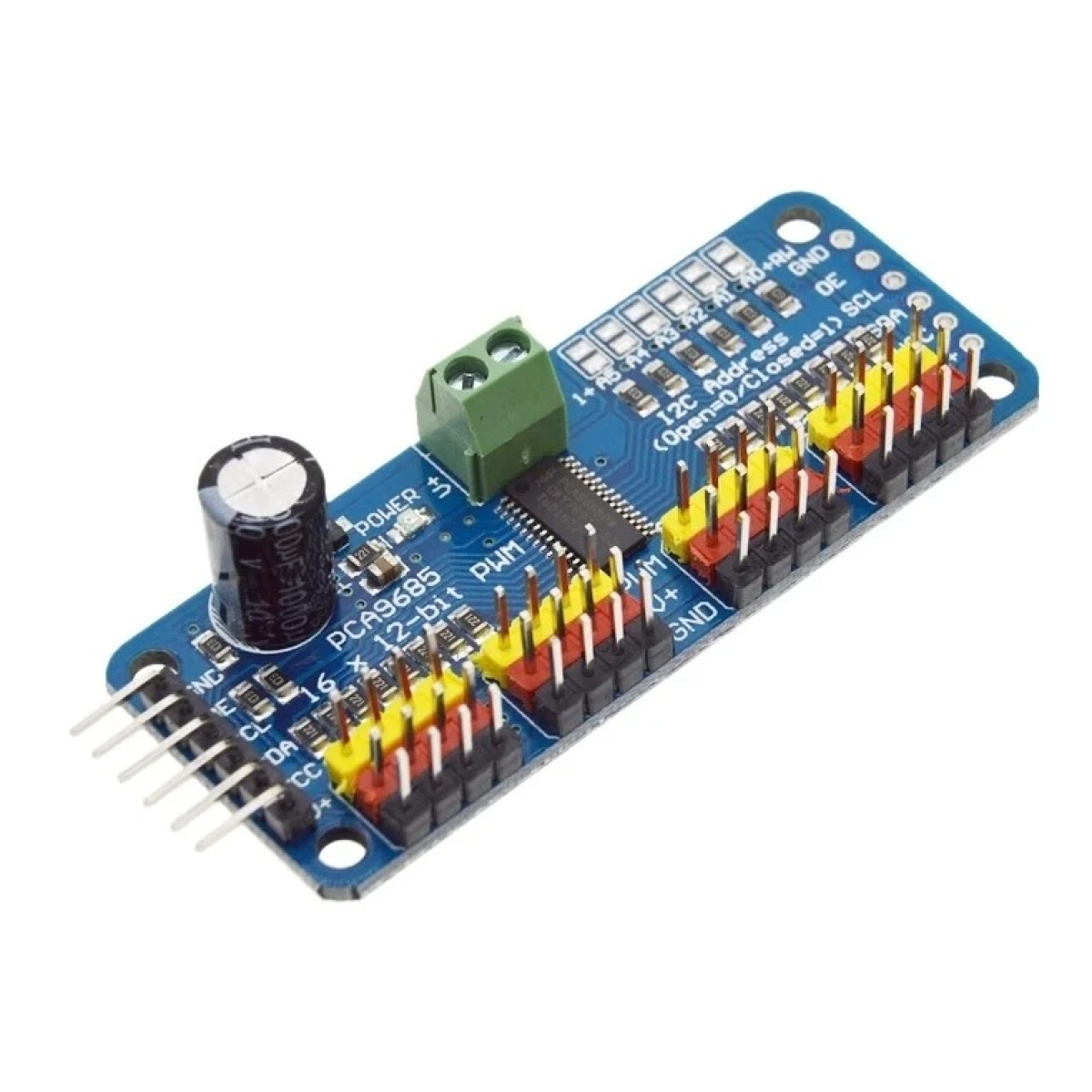

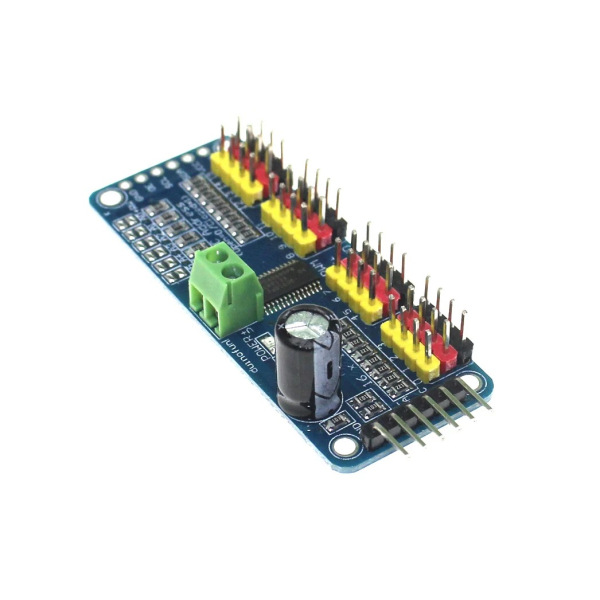

16-Channel 12-bit PWM/Servo Driver I2C interface PCA9685 for Arduino Raspberry Pi

SKU: ET2020

You can control 16 free-running PWM outputs with 16-Channel 12-Bit PWM/Servo Driver using only 2 pins. You can even chain up 62 breakouts to control up to 992 PWM outputs.

Add to wishlist
Compare
18 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  • Adjustable frequency PWM up to about 1.6 KHz
  • 12-bit resolution for each output – for servos, that means about 4us resolution at a 60Hz update rate
  • Configurable push-pull or an open-drain output
  • The output enable pin to quickly disable all the outputs
  • Terminal block for power input
  • Reverse polarity protection on the terminal block input
Additional information
Length (mm):

62
WIDTH(MM)

25
HEIGHT ( MM )

15
Weight (gm)

10
