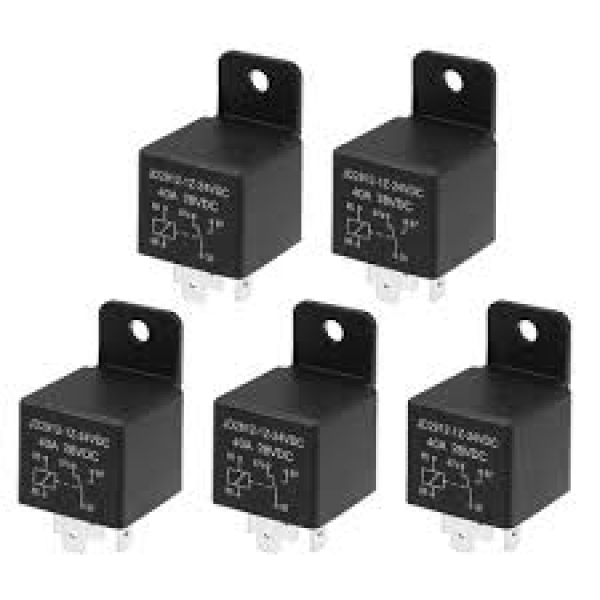

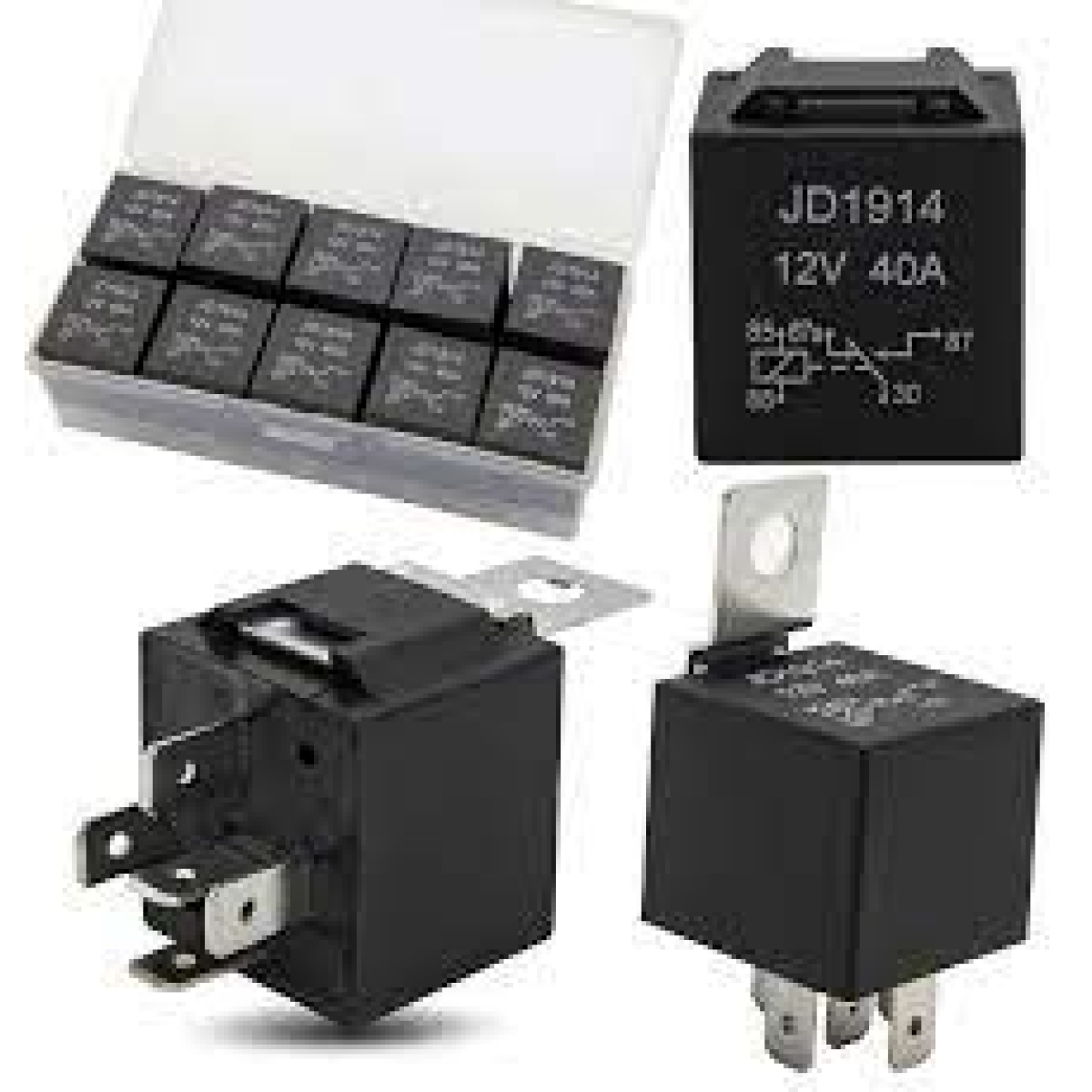

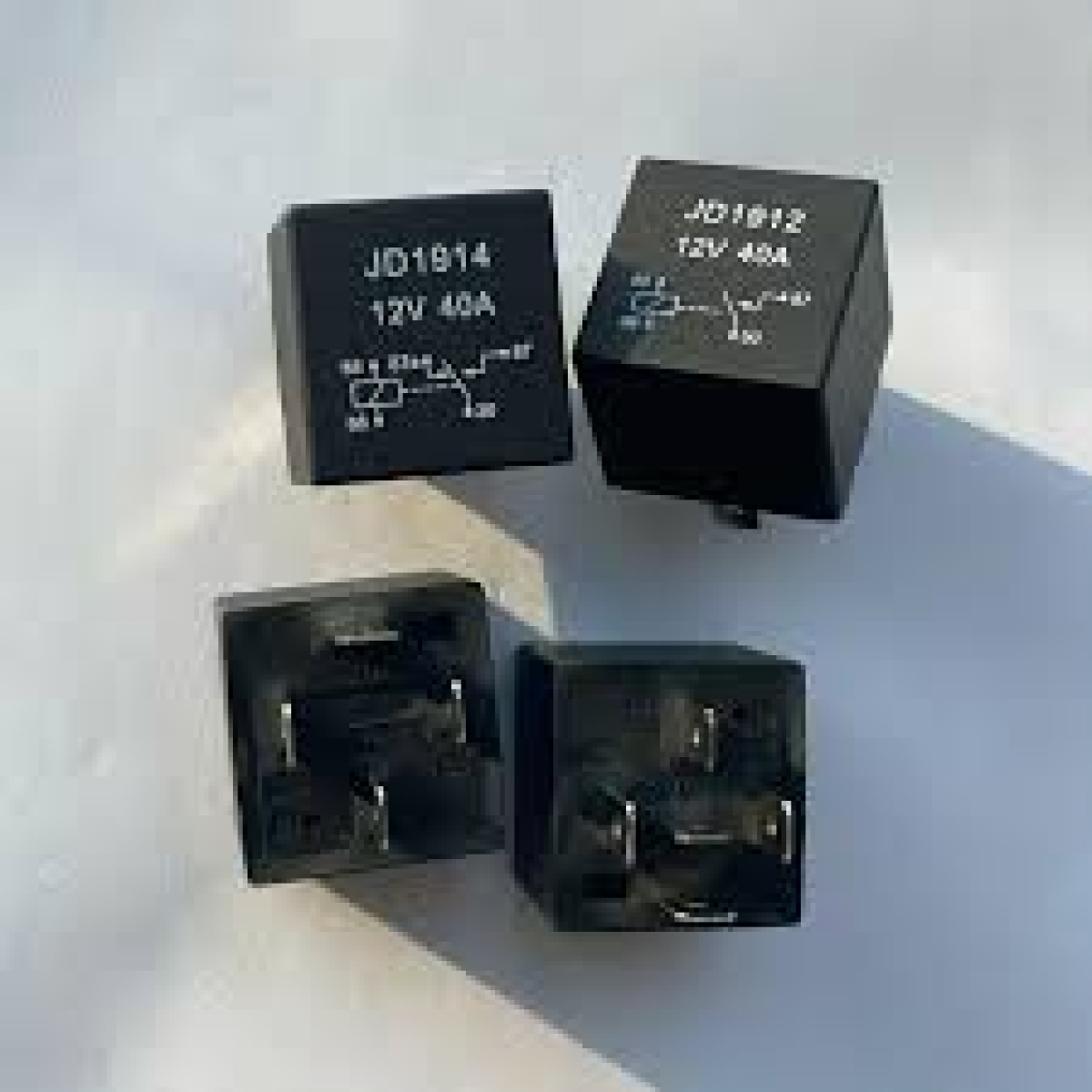

12V RELAY 40A 5PIN BOX

General purpose miniature automotive relays
High resistance to inrush current
High continuous DC current capacity
Ideal for DC motor control
Industry standard size and footprint
RoHS Compliant

12 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  • 2V waterproof 5-Pin SPDT Relay Excellent waterproof and dustproof ability, high quality in any weather conditions
  • 12V 5-Pin SPDT Relay Pin Specifications: Ground (85), VDC (30), Trigger (86), Output N/C (87a), and Output N/O (87).
  • SPDT Relay with 40A/30A High Switching Capability,it has both normally open and normally closed terminals, terminal 87A is powered when the relay is inactive and switches the power to terminal 87 when the relay is activated.
  • 12v relays can operate with anywhere between 9v and 14v,Very suitable for 12V automotive, marine, and machine circuits.
  • These 12V 5-pin relays are rated to handle 30A on normally closed pin 87a and 40A on normally open pin 87.
Additional information
Current Rating

40AMPS

Wattage

560WATTS

Coil Voltage

12VOLTS

Package Dimensions

‎15.9 x 9.6 x 4.8 cm
