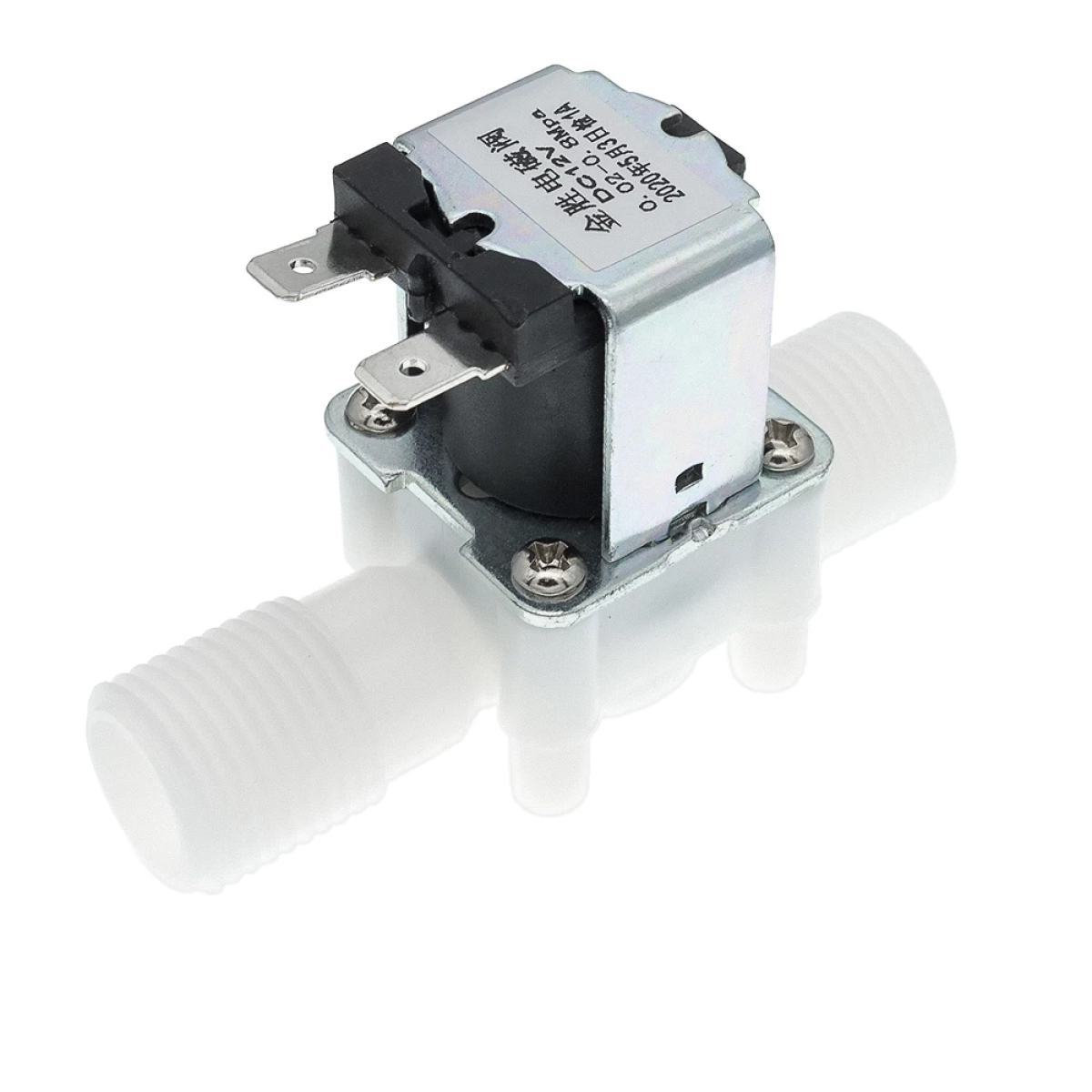

12V DC 1/2″ Electric Solenoid Water Air Valve

Name: 12V DC 1/2″ Electric Solenoid Water Air Valve
SKU: 4276
Availability: InStock

12V Solenoid Water Air Valve Switch (Normally Closed) – 1/2” controls the flow of fluid (liquid or air) and acts as a valve between high-pressure fluid! This liquid valve would make a great addition to your robotic gardening project. There are two ½” (Nominal NPT) outlets. Normally, the valve is closed. When a 12V DC supply is applied to the two terminals, the valve opens and water can push through. The flow rate is ≥1.8L/min when the water pressure is 0.02MPa; the flow rate is ≥20L/min when the water pressure is 0.8MPa.

Add to wishlist

Compare

16 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

Compact and convenient.
Easily installed and serviced
Precise and reliable.
The installation direction can be arbitrary Angle
Pressure-regulating valve (steady flow valve) function similar to the water flow switch
Not only can it provide a steady flow, but it also prevents the dry burning.
Suitable for fluids like water, oil, air.

Additional information

Rated Operating Voltage (VDC)	12
Rated Current (mA)	600
Power Consumption (Watt)	8
Pressure	0.02- 0.8Mpa
Inlet and outlet Dimeter	Hose barbs for 1/2" (outer diameter) hose
Dimensions (mm) LxWxH	Body: 84 x 57mm (L x H), Coil size: 34 x 23mm (W x H)
Max fluid temperature	100Â°C
