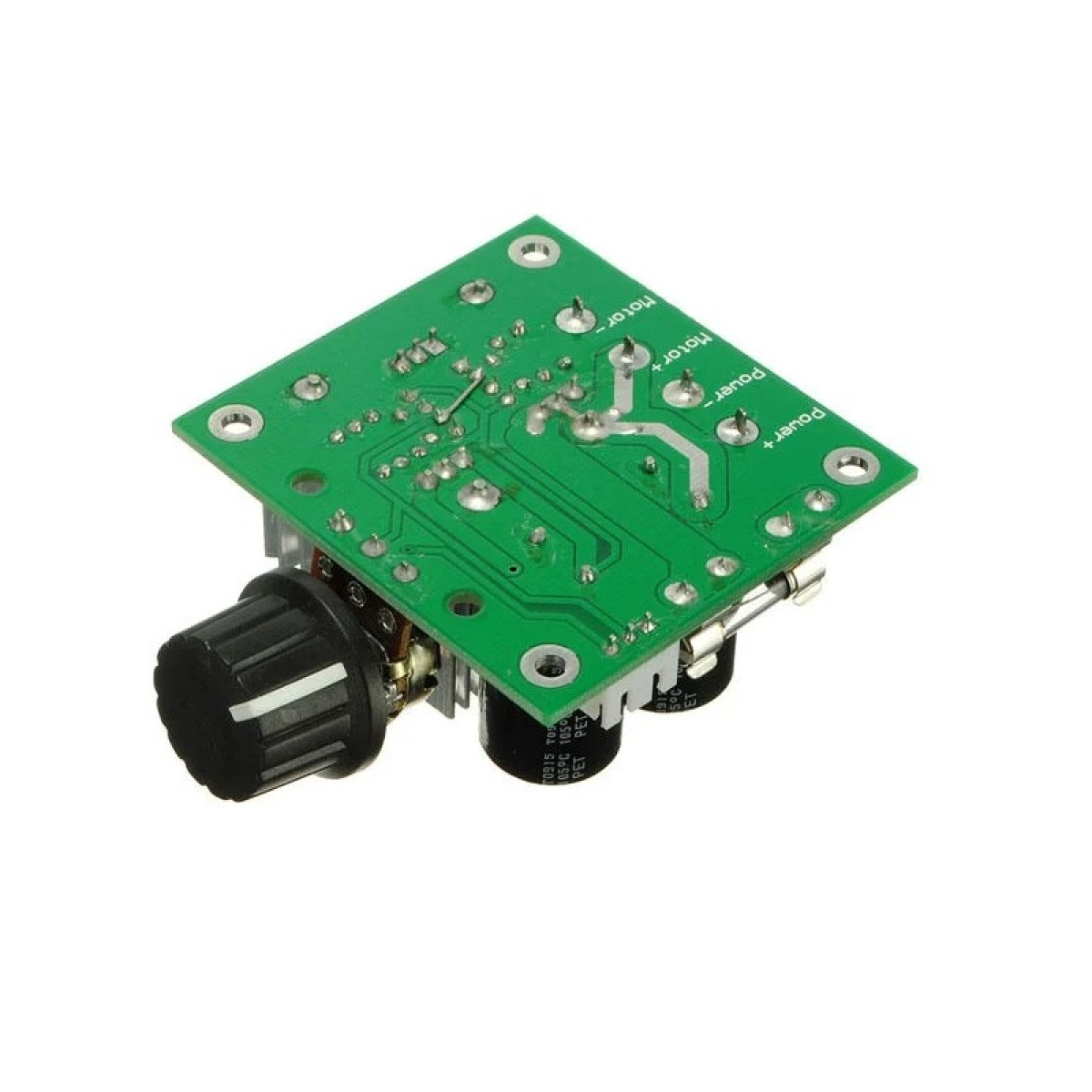

The DC Motor Speed Controller allows controlling direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The motor speed controller can provide a continuous current of 8A to your DC motor or other DC load. The circuit also includes a 10A fuse, with the reverse connection of power supply and control voltage over-voltage protection function.
Working Hours
Input supply voltage: DC 12V-40V
The maximum output power: 400W
The maximum continuous output current:8A
Static Current:0.02 A ( Standby )
PWM frequency: 13kHz
Duty Cycle adjustable: 10%-100%
| Input supply voltage |
DC 12V-40V |
|---|---|
| The maximum output power |
400 W |
| The operation environment temperature: |
-20-40℃ |
| Dimension(cm) |
6*5.5*2.8 |
