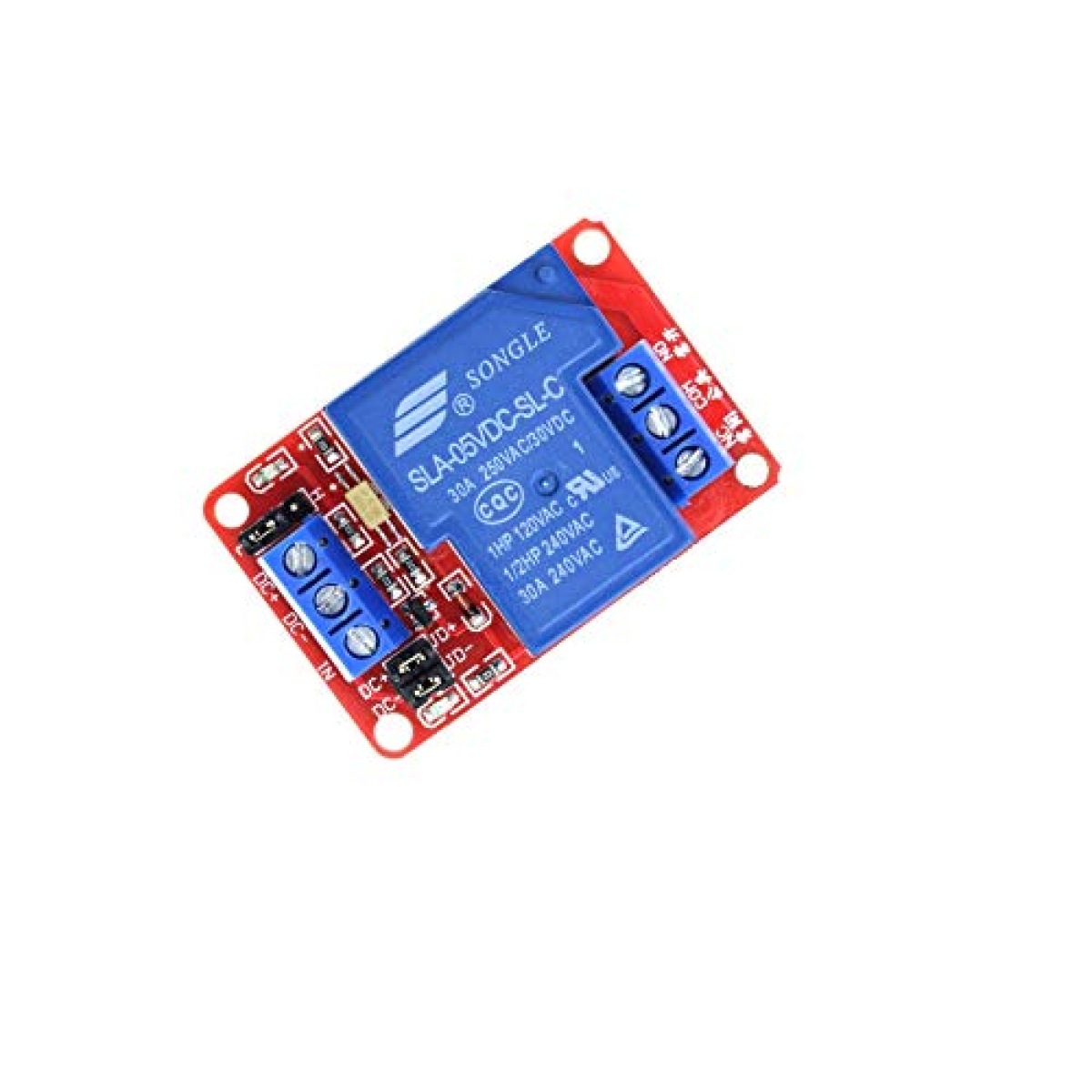

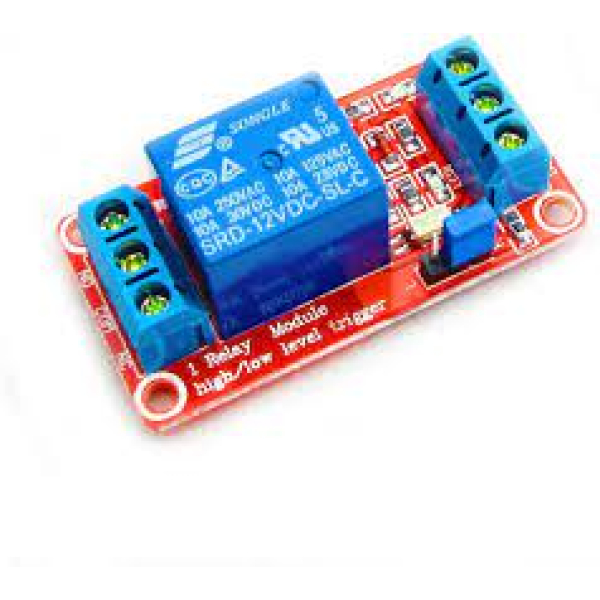

12V 30A Single Channel Relay Module

Profile: 20×20 x material: Aluminum (6063-t5) x length: 30/60cm(optional) x mass of inertia: Lx:0.72cm^4, ly: 0.72cm^4 x section modulus: Zx:0.72cm3, zy:0.72cm3 x high strength and hardness. X durable and compact.

11 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  • This 1 Channel 12V Relay Module is capable of actuating 240VAC/30A circuits safely – Eliminating dangers of high current circuits for users.
  • Operating Voltage – 12VDC Max Current Control – 30A Max Voltage Control (AC) – 240V Max Voltage Control (DC) – 30V
  • Output Modes – Normally Open / Normally Closed Dimensions – 40 x 34 x 22mm Weight – 35g
  • Despite being able to actuate high current and high voltage circuits, the relay itself operates on up to 12VDC, which is safe for users if a fault occurs.
  • Without a relay, if the high current circuit were to leak directly into a user, it could cause serious harm to a user and damage to the components.
Additional information
Current Rating

30 AMPS

Coil Voltage

12 VOLTS

Package Dimensions

‎10.2 x 6.6 x 2.5 cm
