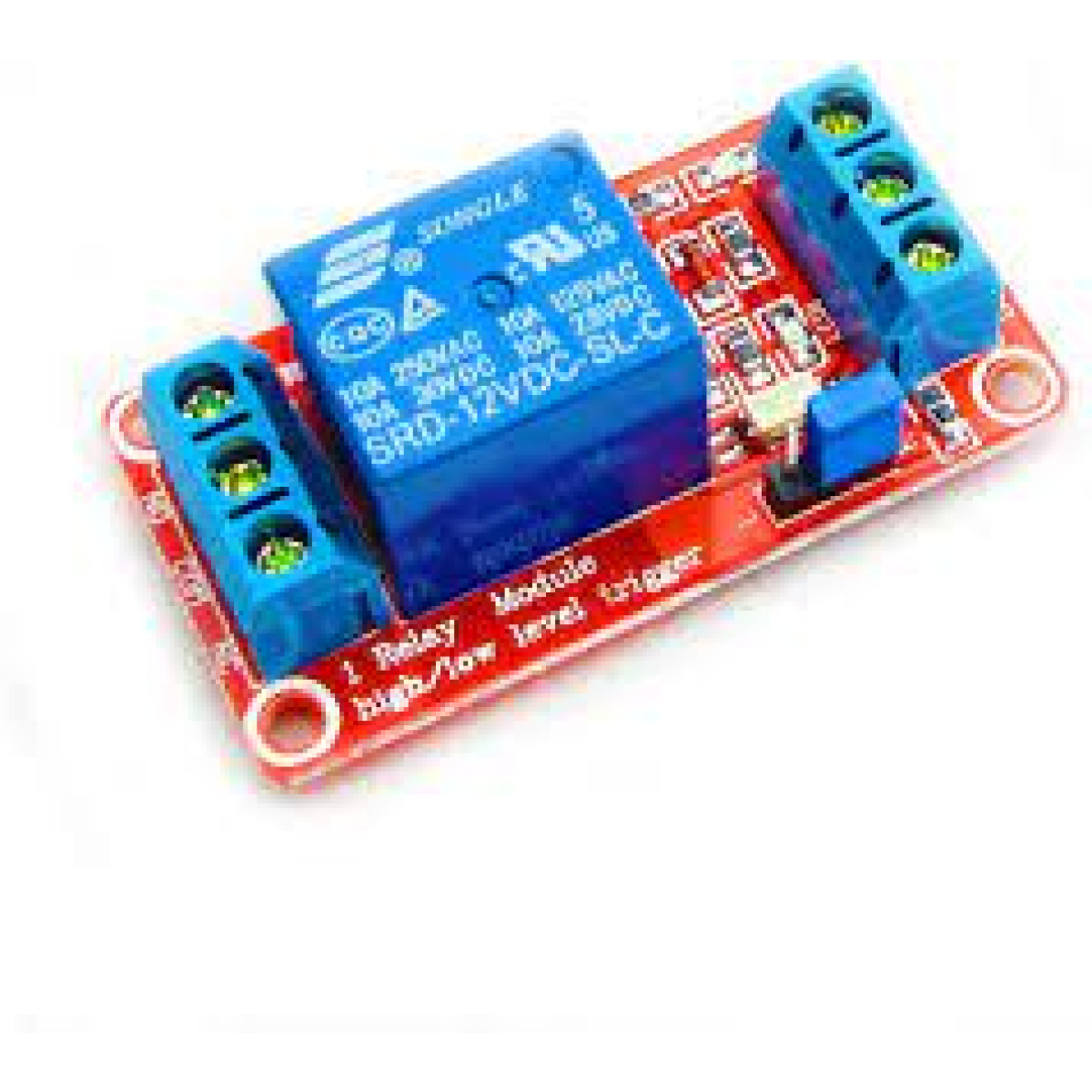

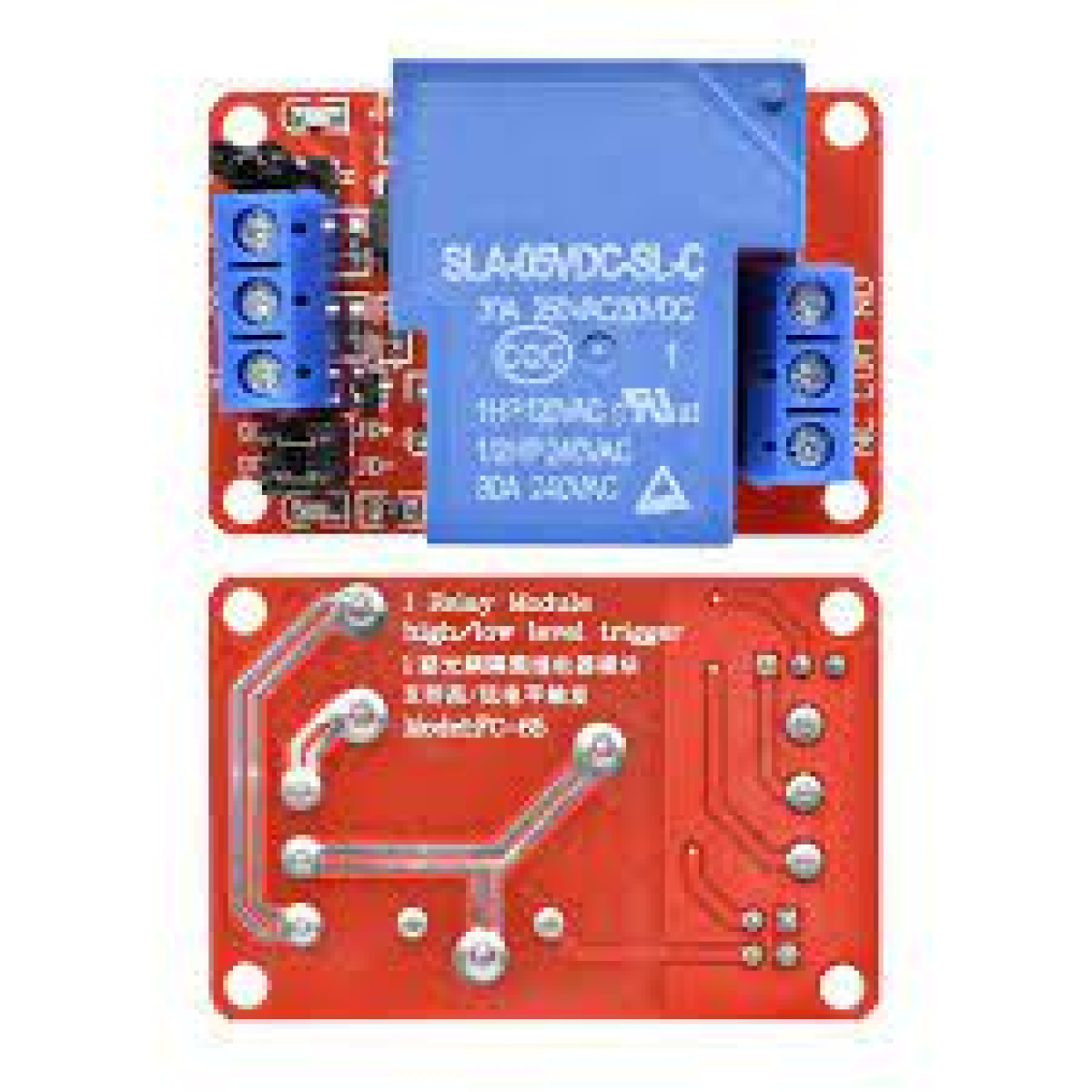

12V 1 Channel Relay Module With OPTO

This 1 Channel Relay Module 30A with Optocoupler, Isolation 12V Supports, High and Low Triger is compliant with international safety standards, control and load areas isolation trenches it has a single relay a genuine.

14 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

1. normally open interfaces Maximum load : AC 250V/10A DC 30V/10A
2. Using SMD OPTOCOUPLER isolation the trigger current only 5mA
3. The module have 5V 9V 12V and 24V are available
4. The module can be set to high or low triggered by jumper
5. Fault-tolerant design even if the control line is broken the relay will maintain;
6. Has the power indicator (green) and relay status indicator (red)
7. Size: 50*26*18.5mm
8. Has four mounting bolts holes hole 3.1mm 44.5*20.5mm pitch
Interface:
Input:
VCC: Relay power supply +
GND: Relay power supply –
IN: Signal trigger input (High or Low Level Signal select via jumper)
Output:
NO: Relay normally open.
COM: Relay Common Pin
NC: Relay normally closed.

Additional information
Current Rating

10amps

Coil Voltage

12 Volts

Package Dimensions

‎6.2 x 3.61 x 1.9 cm
