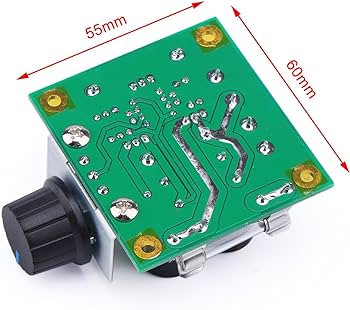

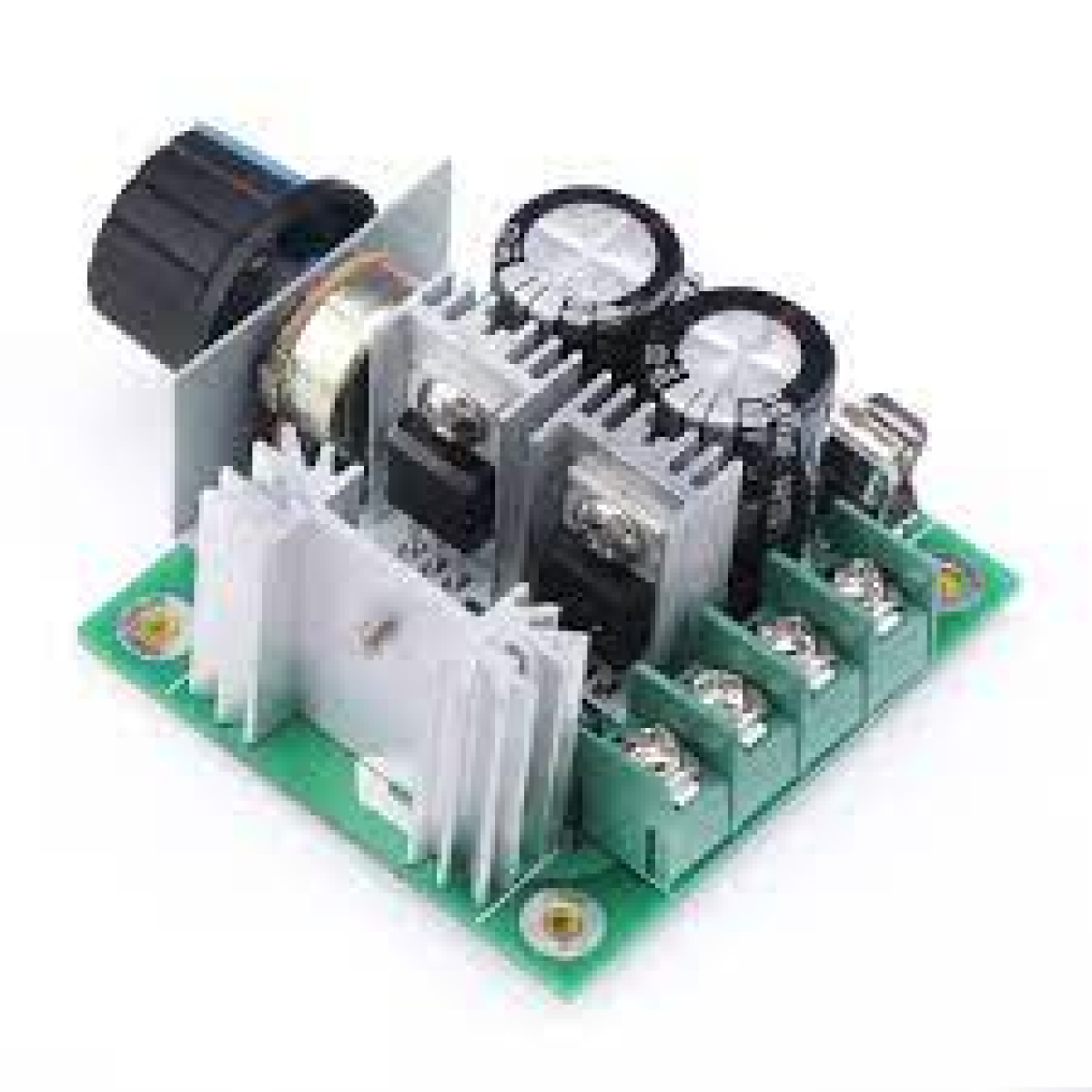

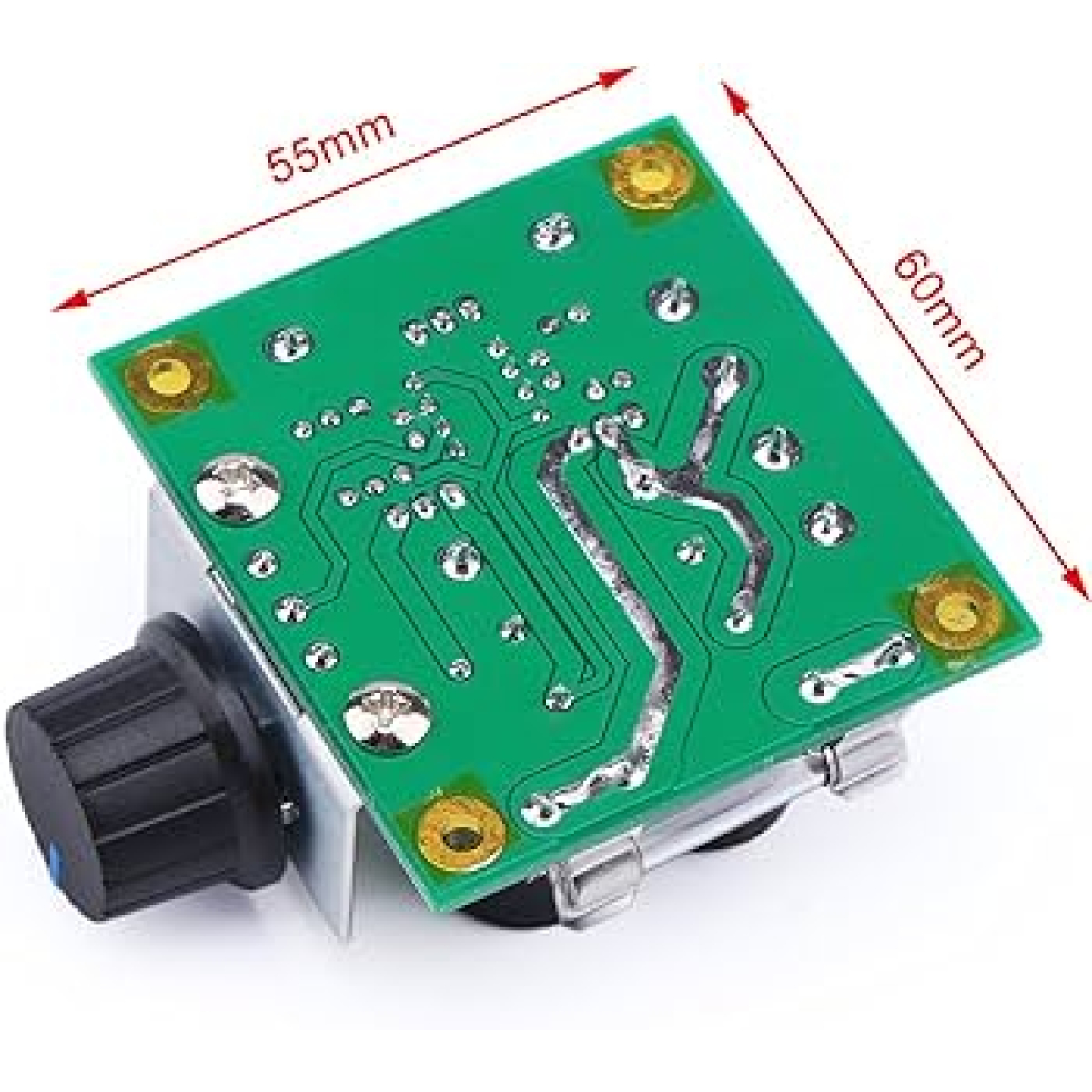

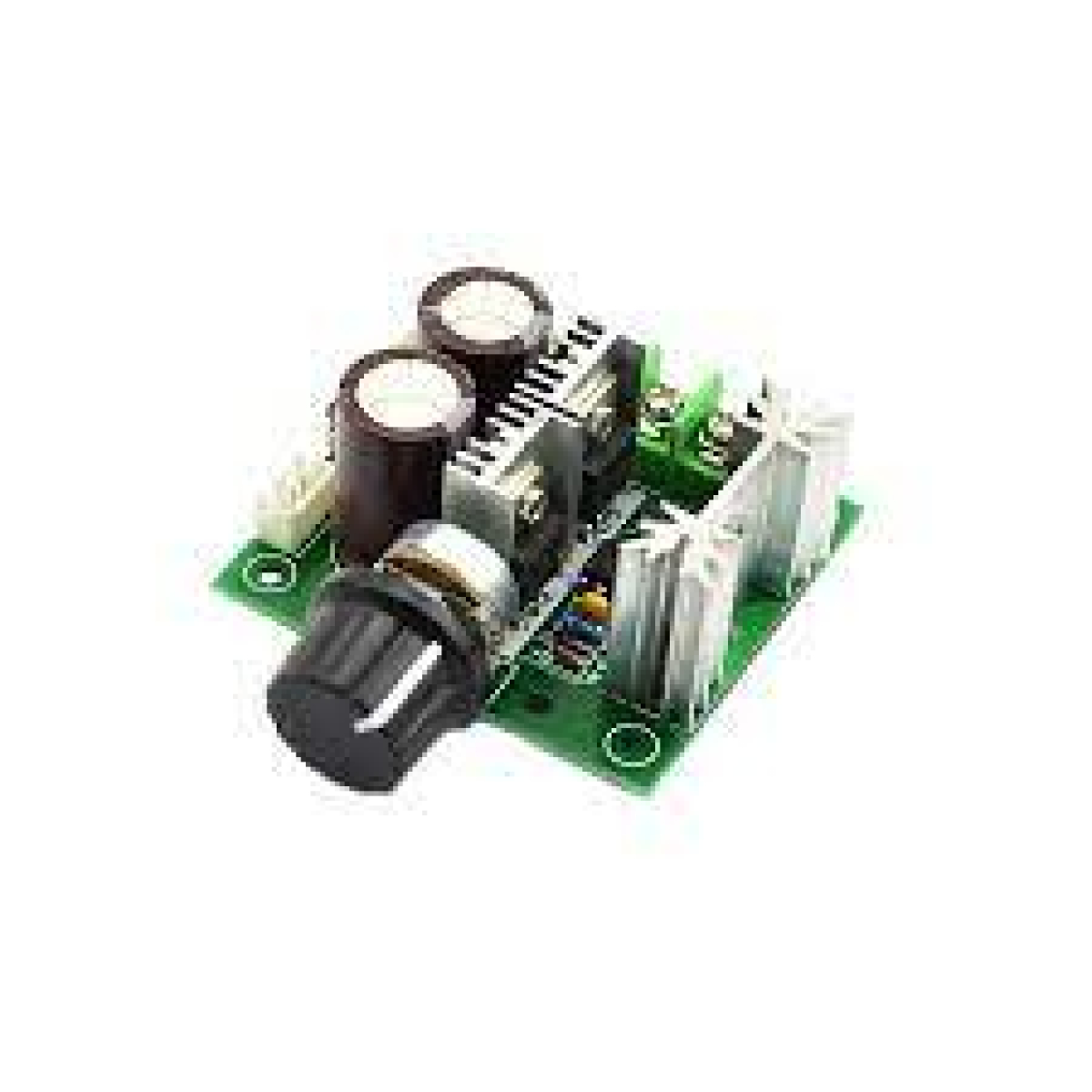

10A PWM Controller ( Mini)

SKU: HW070

The DC Motor Speed Controller allows controlling direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The motor speed controller can provide a continuous current of 8A to your DC motor or other DC load. The circuit also includes a 10A fuse, with the reverse connection of power supply and control voltage over-voltage protection function.

18 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  1. Control the speed of a DC motor with this controller.
  2. High efficiency, high torque, low heat generating.
  3. With reverse polarity protection, high current protection.
  4. Control voltage over-voltage protection function
  5. The overload and short circuit protecting current is 10A
  6. Working Voltage: DC 12V – DC 40V.
  7. Control Power:0.01 – 400W.
  8. Static Current:0.02 A ( Standby ).
  9. PWM Duty Cycle:10% -100%.
Additional information
Input supply voltage

DC 12V-40V

The maximum output power

400W

The maximum continuous output current

8A

The operation environment temperature

-20-40℃

PWM frequency

13kHz
