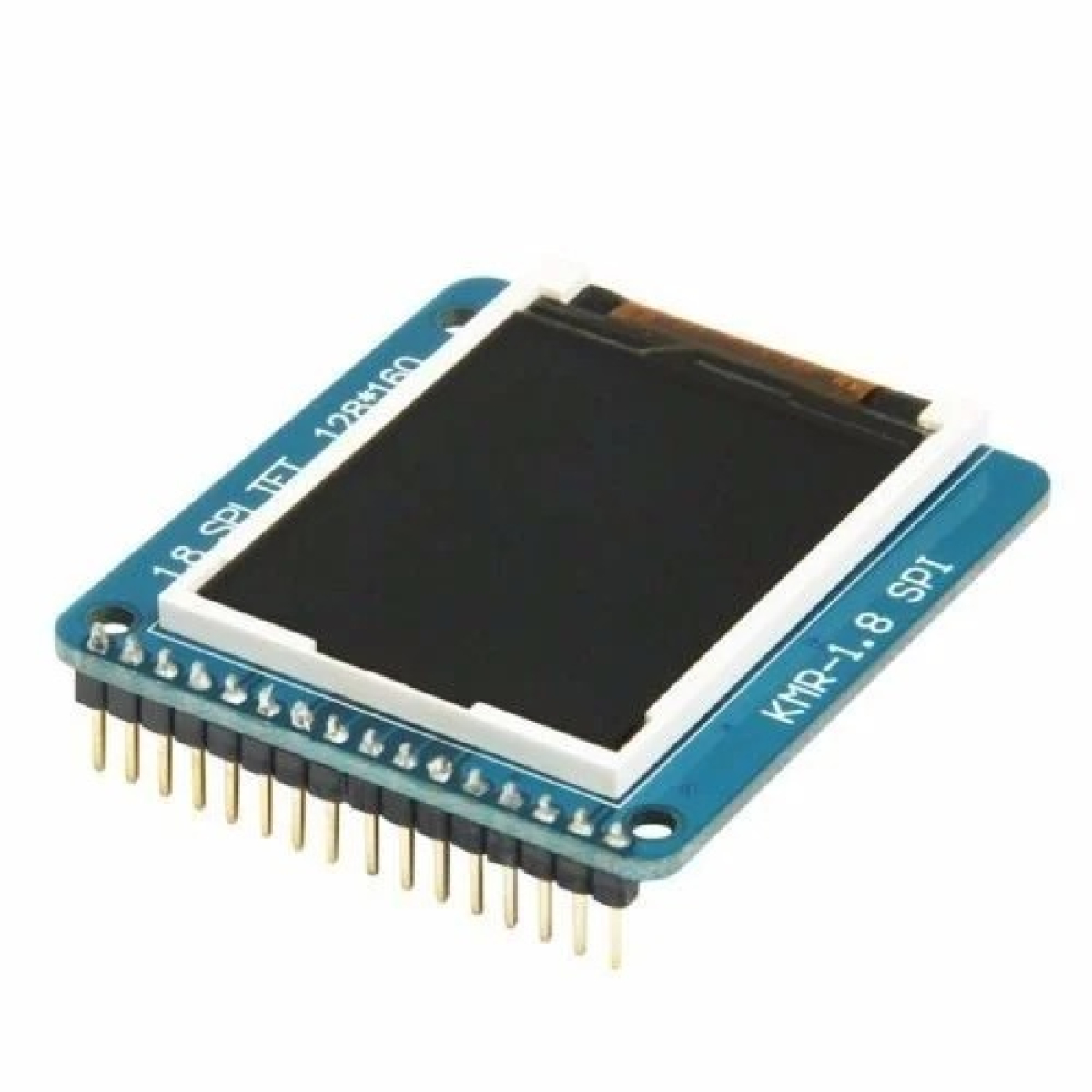

1.8 Inch SPI 128×160 TFT LCD Display MODULE

This lovely little 1.8 Inch SPI 128×160 TFT LCD Display Module With PCB for Arduino is the best way to add a small, colorful and bright display to any project. Since the display uses 4-wire SPI to communicate and has its own pixel-addressable frame buffer, it can be used with every kind of microcontroller. Even a very small one with low memory and few pins available!

The 1.8 Inch TFT LCD Display Module has 128×160 color pixels. Unlike the low cost “Nokia 6110” and similar LCD displays, which are CSTN type and thus have poor color and slow refresh, this display is a true TFT! The TFT driver (ST7735R) can display full 18-bit color (262,144 shades!).

13 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  1. Compatible with the 3.3/5V operation voltage level.
  2. Dimensions: 56mm(length)*44mm(width)

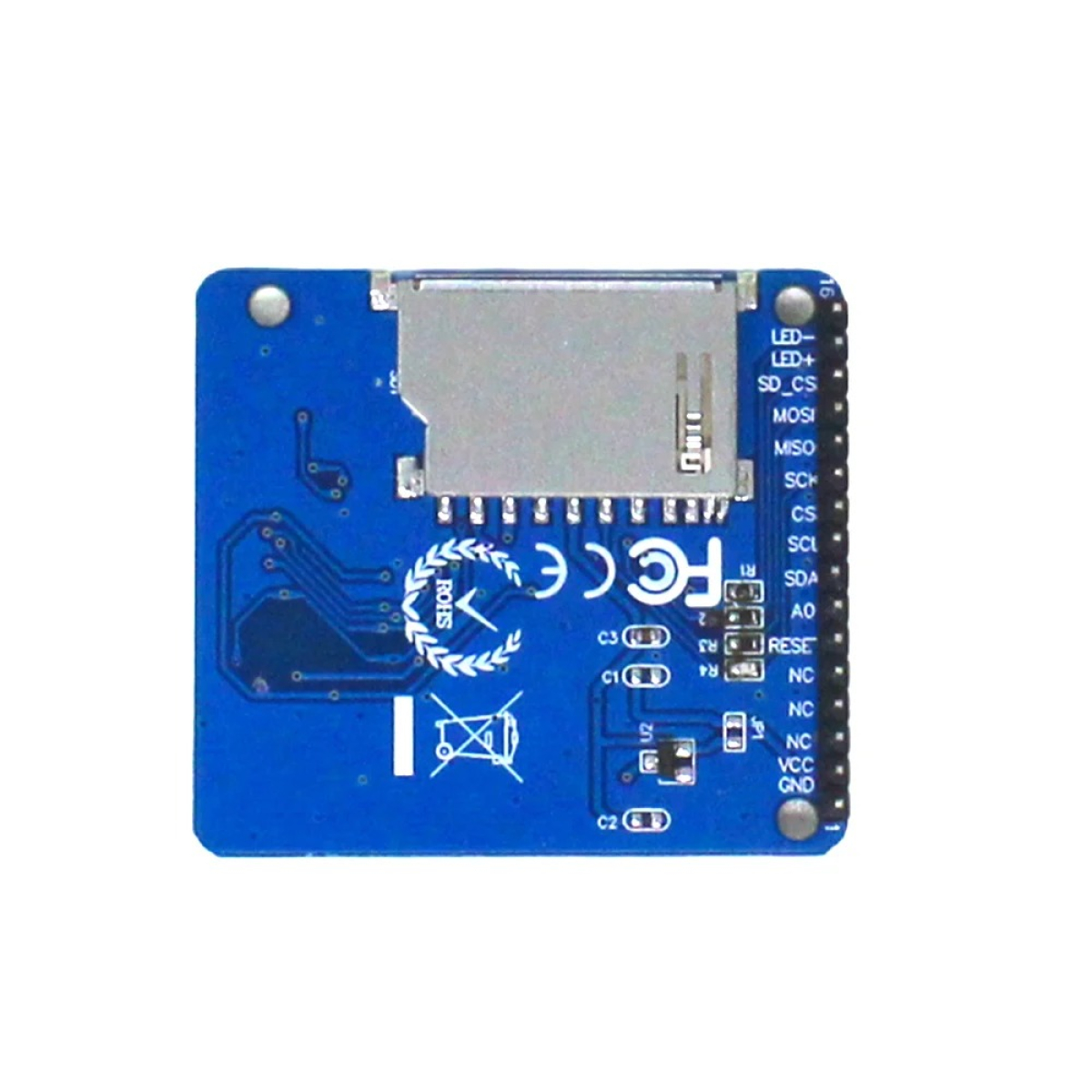

  3. It comes with an SD card socket.
  4. Features Backlight Control Circuit
  5. SPI Serial bus-only require 4 IO least
  6. Compatible with QD-UTFT library for Arduino
Additional information
Pixel Resolution

128 X 60

Shipping Dimensions

8 X 6 X 4 CM
